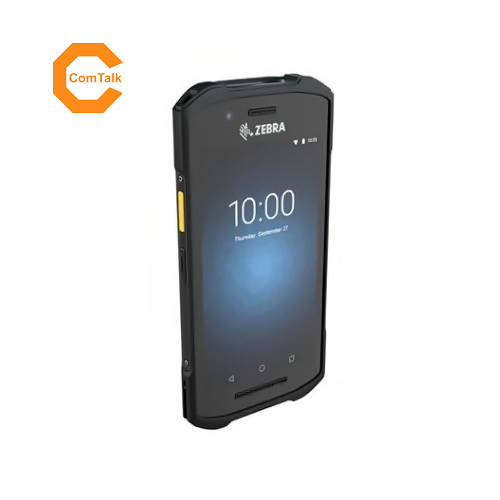

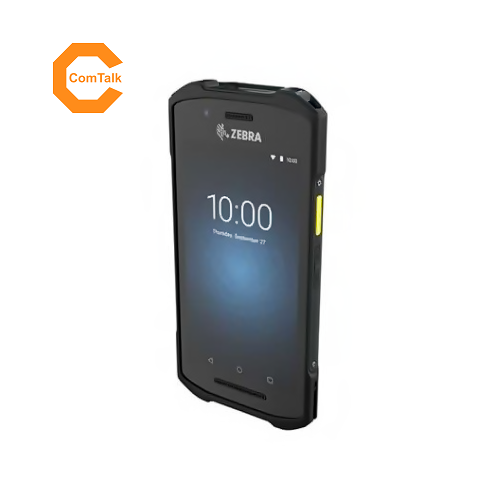

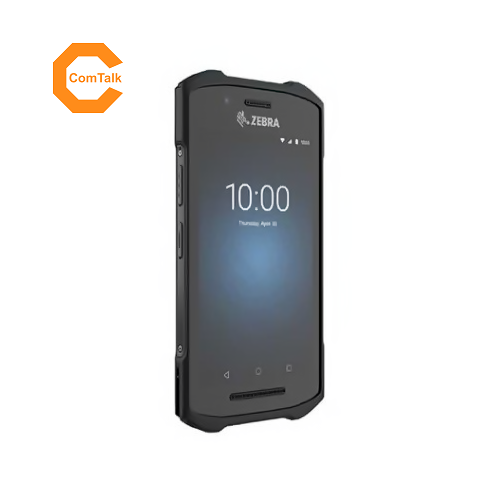

If you’re considering purchasing low-cost mobile phones for your workers, step up to the TC21/TC26 Touch Computers — without stepping up in price. Help your workers access the data they need to act more efficiently. With multiple configurations at different price points, you pay only for the features your workers need, including connectivity — the Wi-Fi-only TC21 for workers inside the four walls or the Wi-Fi/cellular TC26 for workers out in the field. New options include best-in-class 2.2 GHz computing power to maximize application performance, a protective boot for more demanding environments and the ability to turn these devices into a complete workstation in seconds. And powerful new Zebra Mobility DNA™ solutions expand data capture capabilities and simplify device management for any size deployment. The TC21/TC26 Touch Computer — right sized, right featured, right price.
Features:
Lightweight Right-Sized Small Design
Lightweight, easy to carry and easy to operate with one hand.
Android Familiarity
Virtually eliminate training with the familiarity of Android and the built-in support of future Android releases provide superior future-proofing.
Large 5-Inch High Definition Advanced Touchscreen
Get plenty of space to interact with your applications. And the touchscreen is easy to view indoors and outside in bright sunlight.
Built for Business
Waterproof, dustproof, drops to concrete, snow, rain, heat, freezing cold — the TC21/TC26 can handle it all. The display and scanner exit window are fortified with Gorilla Glass. And if you work in more demanding environments, no problem — the optional protective boot ensures reliable operation even after a 5 ft./1.5 m drop.
The power to run all your applications
With a choice of a 1.8 GHz or 2.2 GHz advanced Qualcomm octa-core processor, the TC21/TC26 delivers the fast response times that users need — even for the most demanding applications.
All the wireless connections you could ever need
When it comes to wireless, the class-leading TC21/TC26 offers it all — Wi-Fi, cellular, Bluetooth, GPS and NFC.
Digital wallet support for contactless transactions
With support for Apple VAS and Google Smart Tap, the TC21/TC26 can read tickets, loyalty cards, gift cards, boarding passes and more stored in Apple or Google wallets on consumer smart phones.1
Superior voice quality and functionality
VoLTE delivers superior voice quality over cellular networks, while Zebra’s advanced VoWiFi technology, included with the Mobility DNA Enterprise License, delivers superior voice quality over all of your Wi-Fi voice applications — for example, Push-to-Talk Express for basic walkie-talkie style communications, the Workforce Connect PTT Pro2 subscription service for walkie talkie-style communications over cellular and Wi-Fi networks, and Workforce Connect Voice3 to turn TC21 and TC26 devices into fully-featured PBX handsets.
Capture it all with a high resolution 13 MP rear camera
From proof of delivery to a damaged package, completed repair and occasional barcode capture, do it all with the integrated autofocus color camera.
The right maintenance plan for the right price
Receive enterprise-level service at the right price with Zebra OneCare™ SV. This service helps eliminate unexpected repair costs and keeps devices up and running — at a fraction of the cost of a single uncovered repair.
LifeGuardTM — a lifetime security guard for Android
Included at no cost with your Zebra OneCare maintenance plan, LifeGuardTM for AndroidTM provides security patches and updates to keep devices secure, with options that give you full control over every aspect of the update process.
Extensive business-class accessory family
Easily and cost-effectively manage any size device pool in any environment with single and multi-slot chargers and cradles, vehicle holders, wearable and carrying solutions and more.
Specifications:
Physical Characteristics
| Dimensions | With standard battery: 6.22 in. L x 3.11 in. W x 0.54 in. D 158 mm L x 79 mm W x 13.7 mm D With extended battery: 6.22 in. L x 3.11 in. W x 0.68 in. D 158 mm L x 79 mm W x 17.3 mm D |
| Weight | 8.32 oz./236 g with standard battery; 269 g with extended battery |
| Display | 5.0 in. color HD (1280 x 720); LED backlight; Corning® Gorilla® Glass |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Capacitive Touch Panel; multi-touch |
| Power | Removable/serviceable rechargeable Li-Ion Standard battery: ≥ 3300 mAh/12.54 Wh Extended battery: 5260 mAh/20.25 Wh |
| Expansion Slot | One 128 GB micro SD slot |
| SIM | 1 Nano SIM slot; optional eSIM (TC26 only) |
| Network Connections | TC21: WLAN, WPAN, USB 2.0 hi-speed (host and client) TC26: WWAN, WLAN, WPAN, USB 2.0 hi-speed (host and client) |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad |
| Audio | Speaker - 1 Watt Voice support (Internal speaker/receiver and microphones) |
| Buttons | Scan on each side; volume up/down; power; push-to-talk (PTT) keys |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core, 1.8 GHz or 2.2 GHz (select configurations) |
| Operating System | TC21: Android 11; upgradeable to Android 14 TC26: Android 11; upgradeable to Android 14 |
| Memory | 3 GB RAM/32 GB Flash memory (default); 4 GB RAM/64 GB Flash memory (optional) |
User Environment
| Operating Temp. | 14°F to 122°F / -10°C to 50°C |
| Storage Temp. | -30°F to 158°F / -30°C to 70°C |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | 5 ft./1.5 m drop to concrete per MIL-STD-810G with optional protective boot 4 ft./1.2 m drop to concrete per MIL-STD-810G across operating temperature |
| Tumble Spec. | 550 tumbles, 1.6 ft./0.5 m with boot |
| Sealing | IP67 |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input. |
Data Capture
| Scanning | SE4100 1D/2D imager SE4710 1D/2D imager Camera scanning (SKU dependent) |
| Camera | Rear camera 13 MP; optional front camera 5 MP |
| NFC | Integrated; MIFARE, ISO 14443 A&B , FeliCa , ISO 15693 and NFC Forum supported cards; read range up to 50 mm; support for Apple VAS1 / Google Smart Tap1 |
Wireless WAN Data and Voice Communications
| Radio Frequency Band (TC26 only) | TC26 North America
TC26 Rest of World
TC26 China
|
| Voice Communications | Optional Push-to-Talk (PTT) Express Mobility DNA software application for instant PTT walkie-talkie style calls inside the four walls. Optional Workforce Connect Push-to-Talk (PTT) Pro2 Mobility DNA easy-to-deploy, cost-effective subscription-based software application that provides instant PTT walkie-talkie style calls inside and outside the four walls via an easy-to-deploy subscription service. Optional Workforce Connect Voice3 to turn TC21/TC26 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices. |
| GPS (TC26 only) | GPS with A-GPS: Glonass; BeiDou; Galileo |
Wireless LAN
| WLAN Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO |
| Data Rates | 2.4 GHz: 802.11b/g/n — 20MHz, 40MHz — up to 150 Mbps 5 GHz: 802.11a/g/n/ac – 20MHz, 40MHz, 80MHz – up to 433 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE) |
| Certifications | 802.11a/b/g/n; WPA; WPA2; WPA3 |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC |
Wireless PAN
| Bluetooth | Bluetooth 5.0 BLE, Class 2 |
Environmental Compliance
For a complete list of product and materials compliance, please visit |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the TC21 and TC26 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty |
Part Number: TC210K-01A222-A6 (TC21)
Part Number: TC26BK-11A222-A6 (TC26)
Package Contents:
1 x Handheld Terminal
1 x Documentation
Note: Power Supply with UK Plug, USB Communications & Charging Cable (1M), Handstrap sold separately.
