AFFORDABILITY AND SIMPLICITY DELIVERED

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the cheque-out process and frustrate customers at that key last personal touchpoint in your store.

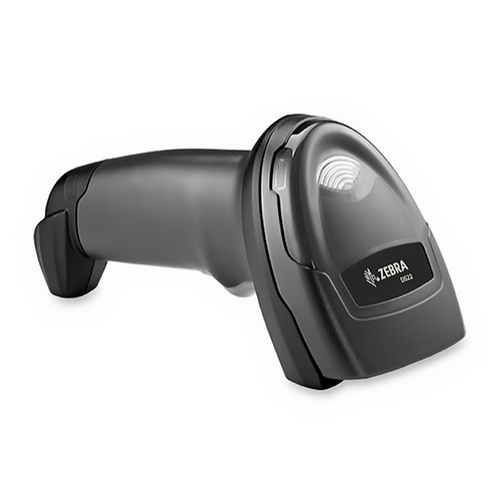

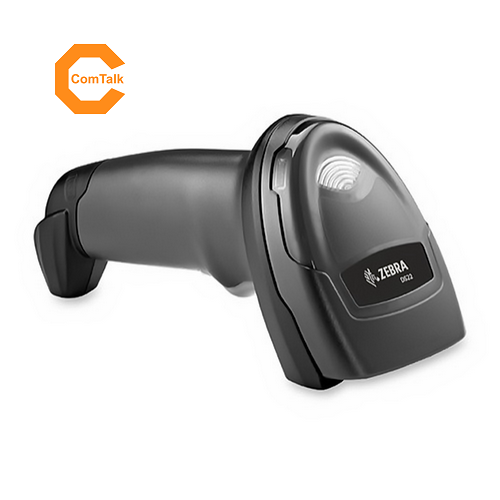

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Specifications:

PHYSICAL CHARACTERISTICS

Dimensions

Corded DS2208:

6.5 in. H x 2.6 in. W x 3.9 in. D

16.5 cm. H x 6.6 cm. W x 9.9 cm. D

Presentation Cradle:

2.8 in. H x 3.7 in. W x 4.8 in. D

7.1 cm. H x 9.4 cm. W x 12.2 cm. D

Weight

Corded DS2208: 5.7 oz. / 161.6 g

Presentation Cradle: TBD

Input Voltage Range

DS2208 and Cradle: 4.5 to 5.5 VDC Host

Powered; 4.5 to 5.5 VDC External Power Supply

Current

Corded DS2208 Operating Current at Nominal

Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and

Illumination on Acquiring Image)

Corded DS2208 Standby Current (idle) at Nominal

Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)

Presentation Cradle and Micro USB Cable: 500 mA

(typical) Standard USB; 1100 mA (typical) BC 1.2 USB

Color

Nova White, Twilight Black

Supported Host Interfaces

USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over

RS485

Keyboard Support

Supports over 90 international keyboards

User Indicators

Direct Decode Indicator; good decode LEDs; Rear view

LEDs; beeper (adjustable tone and volume)

PERFORMANCE CHARACTERISTICS

Motion Tolerance (Handheld)

Up to 5 in./13 cm. per second for 13 mil UPC

Swipe Speed (Hands-Free)

Up to 30.0 in./76.2 cm. per second for 13 mil UPC

Light Source

Aiming Pattern: Linear 624nm Amber LED

Illumination

(2) 645nm Super-Red LEDs

Imager Field of View

32.8° H x 24.8° V Nominal

Image Sensor

640 x 480 pixels

Minimum Print Contrast

25% minimum reflective difference

Skew/Pitch/Roll Tolerance

+/- 65°; +/- 65°; 0-360°

Minimum Element Resolution

Code 39 - 4.0 mil; Code 128 - 4.0 mil;

Data Matrix - 6.0 mil; QR Code - 6.7 mil

USER ENVIRONMENT

Operating Temperature

DS2208 Imagers:

32.0° to 122.0° F/0.0° to 50.0° C

Presentation Cradle:

32.0° to 104.0° F/0.0° to 40.0° C

Storage Temperature

-40.0° to 158.0° F/-40.0° to 70.0° C

Humidity

5% to 95% RH, non-condensing

Drop Specification

Designed to withstand multiple drops at

5.0 ft./1.5 m to concrete

Tumble Specification

Designed to withstand 250 tumbles

in 1.5 ft./.5 m tumbler1

Environmental Sealing

IP42

Electrostatic Discharge (ESD)

DS2208 and Cradle: ESD per EN61000-4-2,

+/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles/0 to 107,600 Lux

RADIO SPECIFICATIONS

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 2

33 ft. (10.0m), Serial Port and HID Profiles; output

power adjustable down from 2.0 dBm in 8 Steps

DECODE CAPABILITIES3

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11,

MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1

DataBar, Base 32 (Italian Pharma)

2D

PDF417, Composite Codes, TLC-39, Aztec, DataMatrix,

MaxiCode, QR Code, Micro QR, Chinese Sensible (Han

Xin), Postal Codes

Package Contents:
1 x DS2208-SR00007ZZWW Scanner
1 x CBA-U21-S07ZBR Shielded USB Cable
1 x 20-71043-04R Stand
1 x Manual

Warranty:

5 Years
