TP-Link VIGI NVR4032H 32 Channel Network Video Recorder | CCTV NVR (Black)

Product Code: NVR-TPL-VIGI-NVR4032H

MYR2399.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • Face Recognition: Enhances access management and maximizes security.
  • Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
  • Mass Storage: Supports 4× SATA, up to 10 TB each
  • 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.

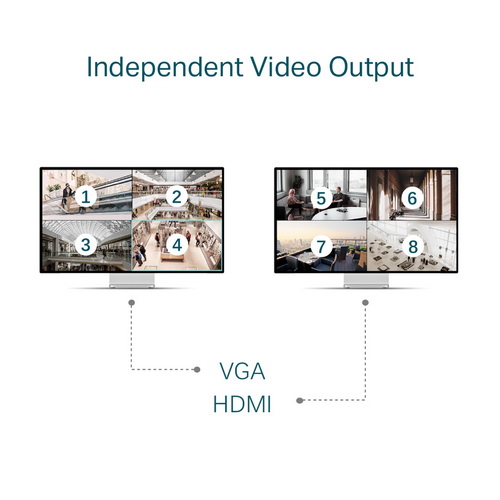

  • 1 HDMI and 1 VGA Interface: Supports independent video output.
  • 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Specifications:

NETWORK
Incoming Bandwith320 Mbps
Outgoing Bandwidth320 Mbps
GENERAL
Package ContentsVIGI Network Video Recorder
Mouse
Installation Guide
Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
Mounting Brackets, Screws and Rubber Feet
Working Temperature-10–55 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )440 × 330 × 44 mm
Net Weight4.0 Kg
Power Supply100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption5 W (Without Disk)
48 W (With Disk)

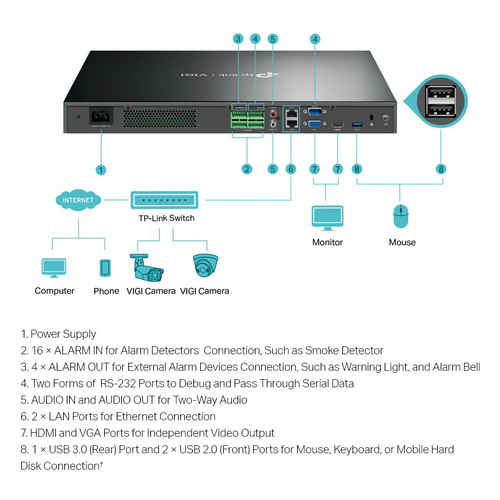

EXTERNAL INTERFACE
Network Interface2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
Interface
USB InterfaceUSB Interface
Audio Interface1, Audio In; 1, Audio Out
Alarm In/Out16/4
Serial Interface1, RS232
NETWORK MANAGEMENT
Network ProtocolsUPnP (Plug and Play), NTP (Network Timing)
InteroperabilityONVIF, CGI
Mobile Phone AccessAndroid, iOS
BrowserChrome (57+), Firefox (52+), Edge (91+)
HARD DISK
SATA4 SATA Interfaces
CapacityUp to 10 TB Capacity for Each HDD
ALARM
General AlarmMotion Detection, Video Tampering, Intrusion Detection,
Line-Crossing Detection
Anomaly AlarmVideo Loss, Offline and IP Conflict,Disk Exception, Login
Exception, Fan Exception
Alarm LinkageRecording, White Ligh Alarm, Buzzer, Log, Audible Alarm
RECORD PLAYBACK
Record ModeManual Recording, Scheduling Recording, Motion Detection
Recording
Playback ModeInstant Playback, Regular Playback, Tag Playback, Event
Playback
Backup ModeRegular Backup, Video Clip Backup
Playback FunctionPlay, Pause, Stop, Fast Forward, Fast Backward, Play by
Frame, Full Screen, Video Clip, Export Clip, Digital Zoom,
Lock Recording, Audio On/Off
VIDEO/IMAGE
IP Video Input32-Channel
Multi-View Dispaly1/4/6/8/9/16/25/32/36
Video Output ModeHDMI/VGA Independent Output
Recording Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
DECODING
Decoding FormatH.265+/H.265/ H.264+/H.264
Live View/Playback Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
(30 fps)

Warranty:
2 Years
