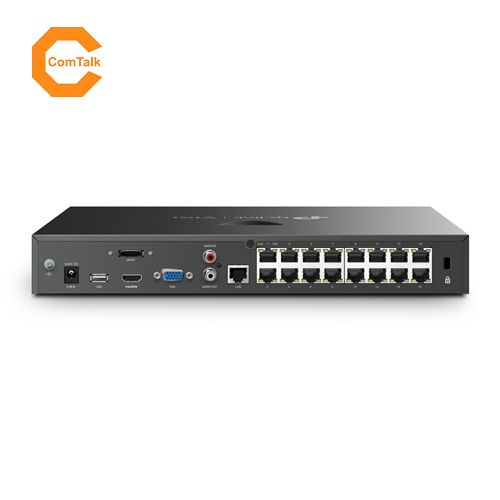

TP-Link VIGI NVR2016H-16P 16 Channel PoE+ (90W) Network Video Recorder | CCTV NVR (Black)

Product Code: NVR-TPL-VIGI-NVR2016H-16P

MYR899.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

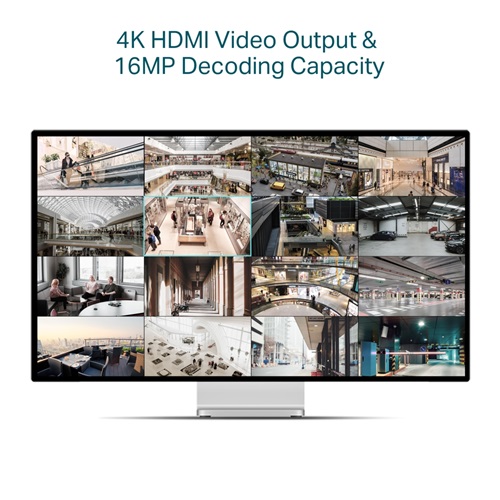

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡

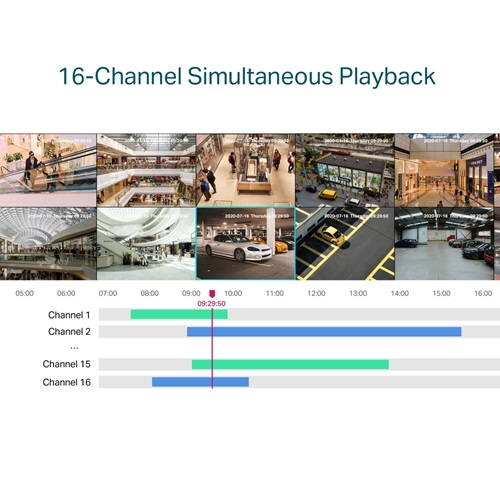

  • 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.

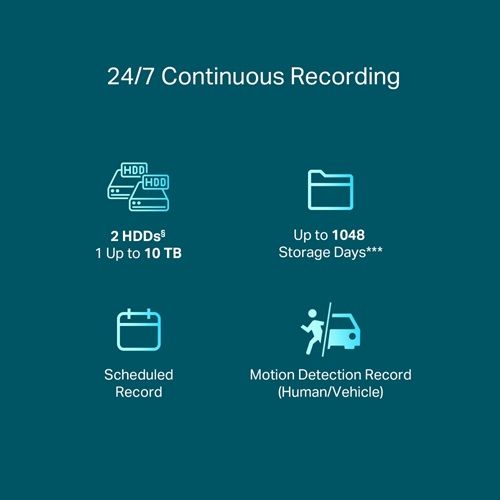

  • 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Specifications:

VIDEO AND AUDIO
IP Video Input16-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9/16
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT
Record ModeManual Recording, Scheduling Recording, Motion Detection Recording
Playback ModeInstant Playback, Regular Playback, Tag Playback, Event Playback
Backup ModeRegular Backup, Video Clip Backup
Playback FunctionPlay, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI

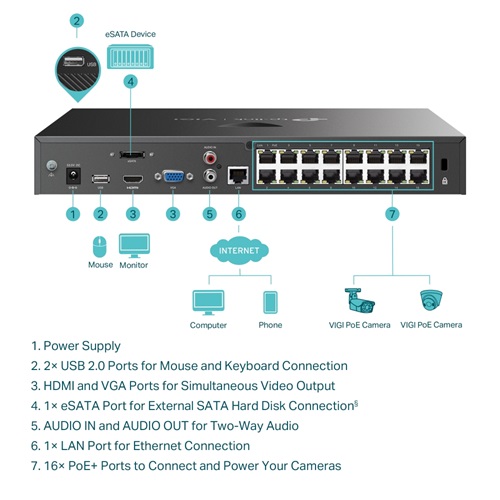

EXTERNAL INTERFACE
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
HARD DISK
SATA2 SATA Interfaces
CapacityUp to 10 TB Capacity for Each HDD
POE
Standard802.3at/af Compliant
Interface1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget90 W Available for All PoE+ Ports, 30 W Max per Port
ALARM
General AlarmMotion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly AlarmVideo Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm LinkageRecording, White Light Alarm, Buzzer, Log, Audible Alarm
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Package ContentsVIGI Network Video Recorder
Power Adapter
Power Cables
HDD Power Cables
HDD Data Cables
Mounting Accessories
Mouse
Quick Installation Guide
Working TemperatureNVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )330 × 285 × 45 mm
Net Weight1.9 Kg
Gross Weight3.2 Kg
Power Supply53.5V DC/2.43A
Power Consumption6.2 W (Without Disk)
40 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Warranty:
2 Years
