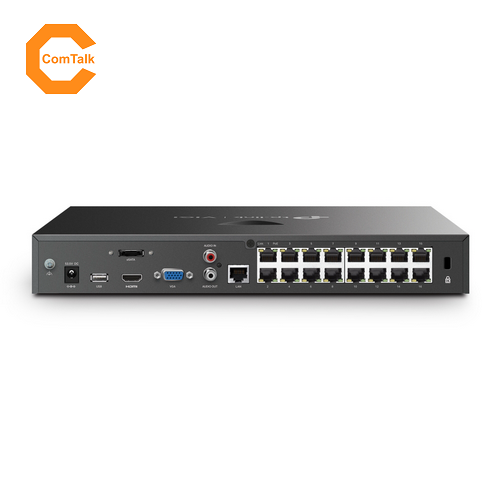

TP-Link VIGI NVR2016H-16MP 16 Channel PoE+ Ports Network Video Recorder (140W) | CCTV NVR (Black)

Product Code: NVR-TPL-VIGI-NVR2016H-16MP

MYR999.00

Color
Size

Brand: TP-Link

  • Share

Highlights:

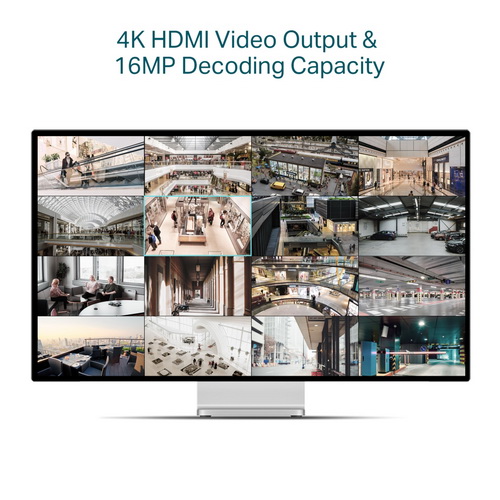

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡

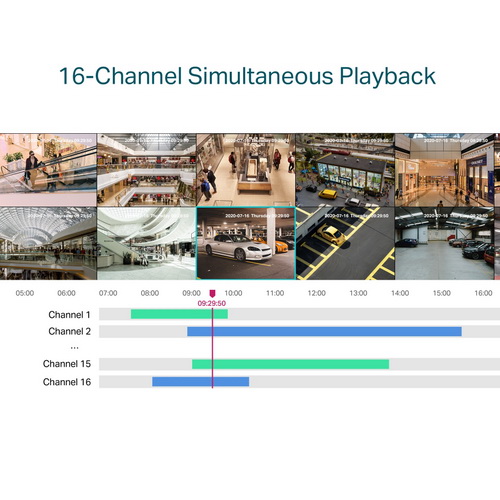

  • 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
  • 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Specifications:

VIDEO AND AUDIO
IP Video Input16-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9/16
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability• 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps:
4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI

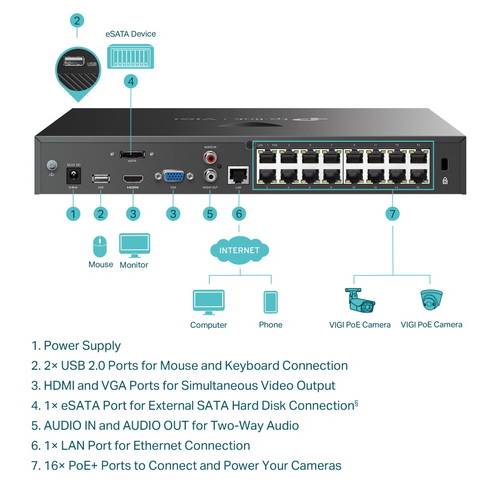

EXTERNAL INTERFACE
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
HARD DISK
SATA2 SATA Interfaces
CapacityUp to 10 TB Capacity for Each HDD
POE
Standard802.3at/af Compliant
Interface1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget140 W Available for All PoE+ Ports, 30 W Max per Port
ALARM
General Alarm• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Package Contents• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
Working Temperature• NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )330 × 285 × 45 mm
Net Weight2.1 Kg
Gross Weight4.1 Kg
Power Supply53.5V DC/3.37A
Power Consumption• 6.2 W (Without Disk)
• 40 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Warranty:
2 Years
