TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA Interfaces | CCTV NVR (Black)

Product Code: NVR-TPL-VIGI-NVR2016H

MYR569.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Specifications:

VIDEO AND AUDIO
IP Video Input16-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8/9/16
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT
Record ModeManual Recording, Scheduling Recording, Motion Detection Recording
Playback ModeInstant Playback, Rgular Playback, Tag Playback, Event Playback
Backup ModeRegular Backup, Video Clip Backup
Playback FunctionPlay, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI

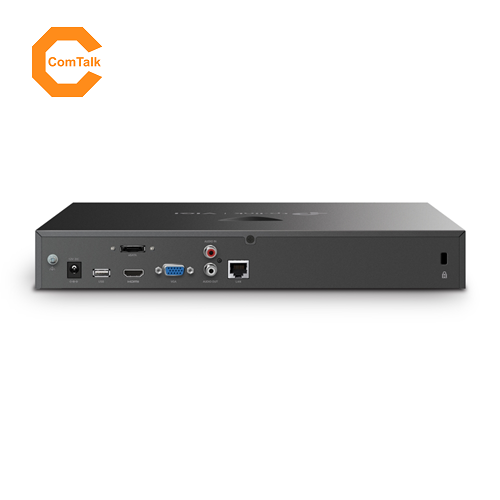

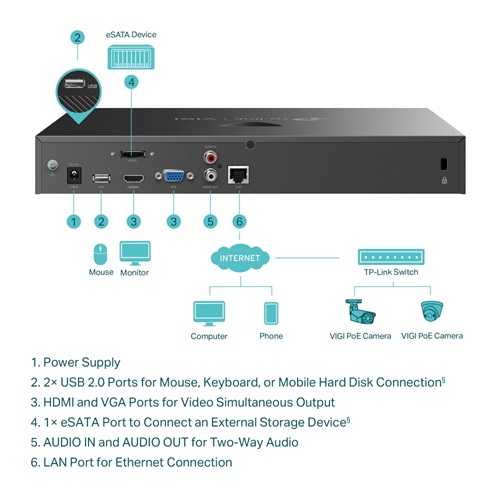

EXTERNAL INTERFACE
Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI1
VGA1
HARD DISK
SATA2 SATA Interfaces
CapacityUp to 10 TB Capacity for Each HDD
ALARM
General AlarmMotion Detection, Video Tampering, Intrusion Detection,
Line-Crossing Detection
Anomaly AlarmVideo Loss, Offline and IP Conflict, Disk Exception, Login
Exception, Fan Exception
Alarm LinkageRecording, White Ligh Alarm, Buzzer, Log, Audible Alarm
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Package ContentsVIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Working Temperature-10–55 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )330 × 285 × 45 mm
Net Weight1.9 Kg
Gross Weight3.2 Kg
Power Supply12V DC/3.3A
Power Consumption4.78 W (Without Disk)
24.16 W (With Disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Warranty:
2 Years
