TP-Link VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera | CCTV Camera (White)

Product Code: CAM-TPL-VIGI-C540V

MYR299.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
  • 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
  • 3× Zoom: Allows for closer viewing of objects in expansive areas.
  • Instant Zoom: Zooming is instant without suffering from delays and image dragging.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Specifications:

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/white light
Day/Night MechanismIR Cut Filter
Zoom3x Mixed Zoom
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)

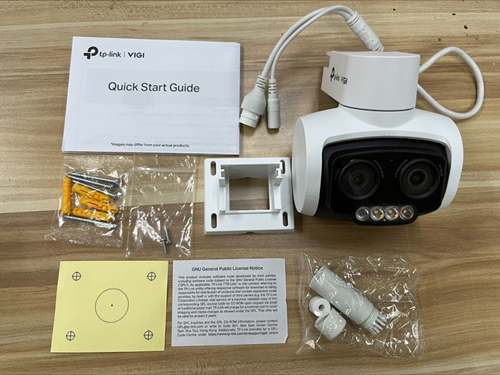

Package ContentsVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
MaterialPlastic
Net Weight0.43 Kg
Gross Weight0.66 Kg
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4)
Power ConsumptionMaximum: 14 W
Typical (Day Mode): 2.9 W
Typical (Night Mode with IR LED): 5.7 W
Typical (Night Mode with White LED): 6.1 W
ProtectionIP66
Product Dimensions (L x W x H)139*136*107 mm
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
LENS
Focal Length4-12 mm (Mixed Zoom)
ApertureF1.6
FOVDiagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens MountM12*P 0.5
PTZ
Pan/tilt RangePan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt SpeedPan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control SpeedConfigurable from 8° to 35°/s
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Power-off MemoryYes;
Auto restore to previous PTZ and lens status after power failure
Park ActionYes;
Preset; Patrol Scan
3D PositioningYes
ANGLE ADJUSTMENT (MANUAL)
RangePan: 0° to 332°, Tilt: 0° to 120°
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
ILLUMINATOR
IR LEDQuantity: 1
Range: 30m
Wavelength: 850nm
White LEDQuantity: 3
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

Warranty:
2 Years
