TP-Link VIGI C540S 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera (Lens: 4mm)

Welcome to ComTalk Online Shopping Mall

Hotline: 60127283065

Product Code: CAM-TPL-VIGI-C540S

MYR589.00

White ✓

4mm ✓

Add To Cart

Brand: TP-Link

Country

State

Shipping Method

Highlights:

Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
360° Monitoring: Cover every corner and eliminate blind spots.
Face Recognition*: Efficiently enhances access management and attendance control while better protecting privacy.*
People & Vehicle Analytics*: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.*
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
True WDR Technology§: Enable crystal-clear images in high contrast scenes.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Specifications:

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.0±5%
FOV	4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
Lens Mount	M16*P 0.5
DORI Distance	4 mm: Detect: 63 m (207 ft) Observe: 26 m (86 ft) Recognize: 13m (41 ft) Identify: 6 m (21 ft)

ANGLE ADJUSTMENT (MANUAL)

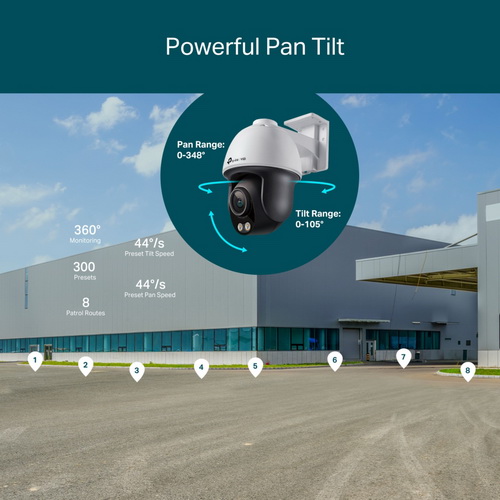

Range	Pan: 0° to 348° Tilt: 0° to 105°

PTZ
Pan/tilt Range	Pan: 0° to 348°, Tilt: 0° to 105°
Pan/tilt Speed	Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes

ILLUMINATOR
IR LED	N/A
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC
Wide Dynamic Range	120dB Note: When Face Recognition s is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

DEEP LEARNING FUNCTION
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture	Support
Face Comparison	Support

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Plastic
Power Supply	12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16.47 W
Protection	IP66
Product Dimensions (L x W x H)	120 × 172 × 203 mm
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Warranty:

2 Years
