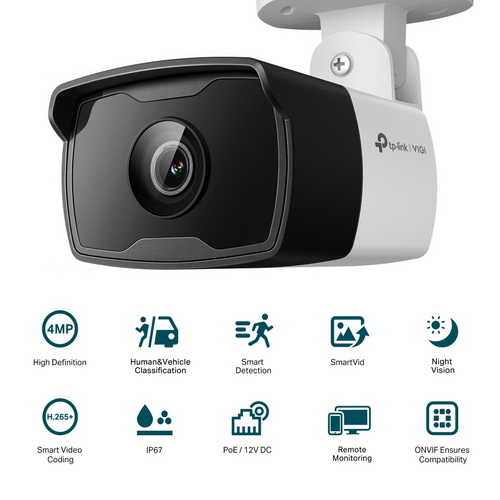

TP-Link VIGI C340I 4MP Outdoor IR Bullet Network Camera (Lens: 2.8mm / 4mm) | CCTV Camera (White)

Product Code: CAM-TPL-VIGI-C340I

MYR169.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

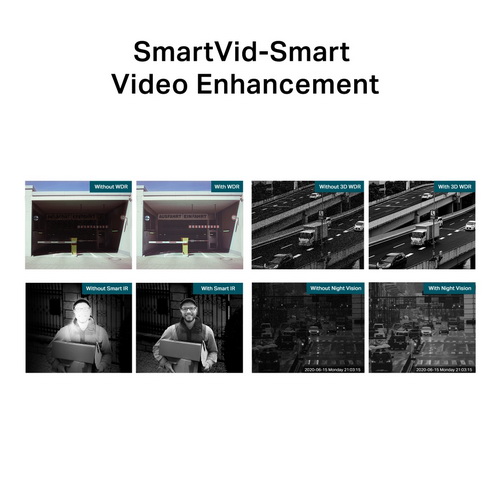

  • Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

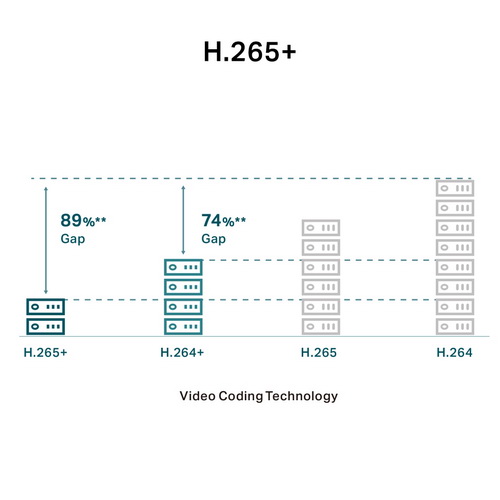

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

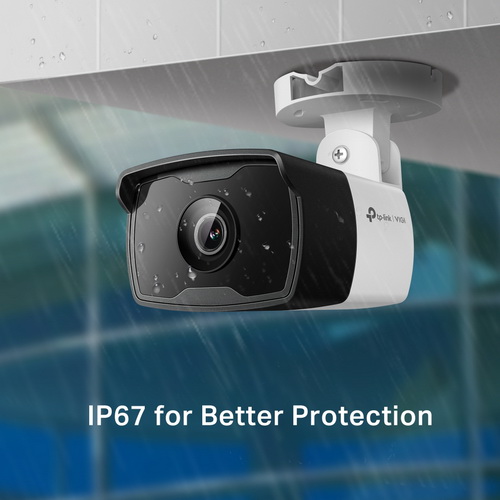

  • Waterproof: Reliable IP67 for stable outdoor performance.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

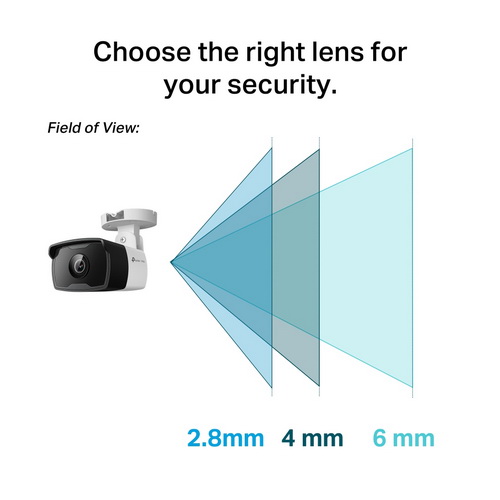

  • 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specifications:

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture2.8 mm: F2.2
4 mm: F2.2
6 mm: F2.0
Lens2.8 mm/ 4 mm/ 6 mm
Lens MountM12
Minimum IlluminationColor: 0.1 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
Day/Night SwitchDay/Night/Auto/Schedule-Switch
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
IR Working Distance30m
Viewing Angle2.8 mm, Diagonal FOV: 106.5°
4 mm, Diagonal FOV: 87.4°
6 mm, Diagonal FOV: 56°
LENS
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm/6 mm
Aperture2.8 mm: F2. 2
4 mm: F2.0
6 mm: F2.0
FOV2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

4 mm:
Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°

6 mm:
Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
Lens MountM12
DORI Distance2.8 mm:
Detect: 60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)

4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

6 mm:
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: -90° to 90°
Tilt: -90° to 90°
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2560 × 1440
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationN/A
Audio InputN/A
Audio OutputN/A
Audio CompressionN/A
Audio Sampling RateN/A
Environment Noise FilteringN/A
Audio Bit RateN/A
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network StorageNAS (NFS, SMB/ CIFS)
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMessage Push
Linkage MethodN/A
Output NotificationMessage Push
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button-
Video Output-
On-board StorageN/A
Built-in MicrophoneN/A
Built-in SpeakerN/A
AudioN/A
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)

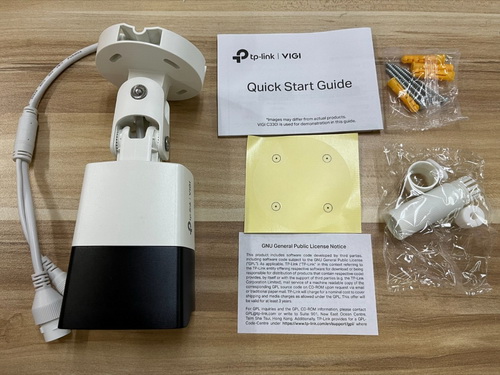

Package ContentsVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D )174 × 74 × 71 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Net Weight0.2 Kg
Gross Weight0.35 Kg
Power Consumption12V DC: Max 5W
PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
ProtectionIP67
Product Dimensions (L x W x H)73× 174 × 71 mm
CertificationsCE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240
Max. Resolution4MP (2560 × 1440)
Video StreamingMain Stream
Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
SMART FEATURE-SET
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region

Warranty:
2 Years
