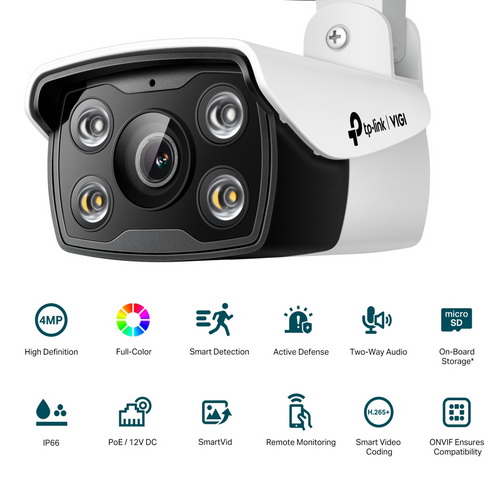

TP-Link VIGI C340 4MP Outdoor Full-Color Bullet Network Camera (Lens: 2.8mm / 4mm) | CCTV Camera (White)

Product Code: CAM-TPL-VIGI-C340

MYR199.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • IP67 Waterproof: Reliable IP67 for stable outdoor performance.

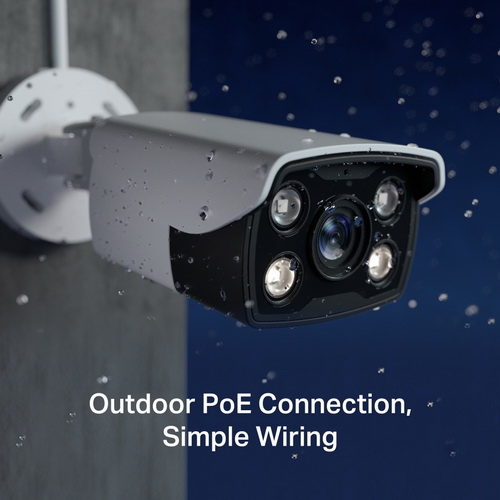

  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

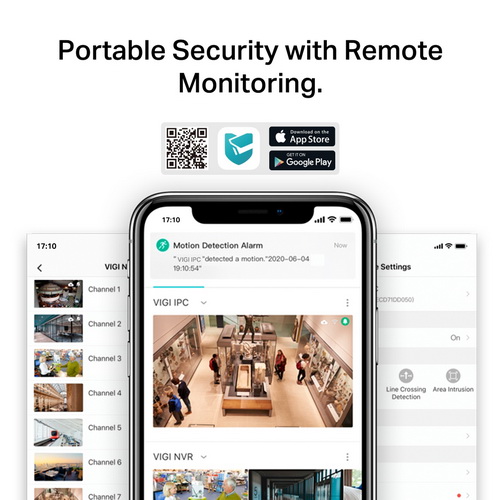

  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Specifications:

CAMERA
Image Sensor1/3” Progressive Scan CMOS
LensFixed focal lens (2.8 mm / 4 mm / 6 mm)
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP66
IR Working Distance30m
Shutter Speed1/3 to 1/10000 s
Aperture2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
Lens MountM12
Illumination Distance30 m
Viewing Angle(2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Slow ShutterYes
Minimum Illumination0 lux with IR/white Light
Day/Night MechanismIR Cut Filter
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Weight195g

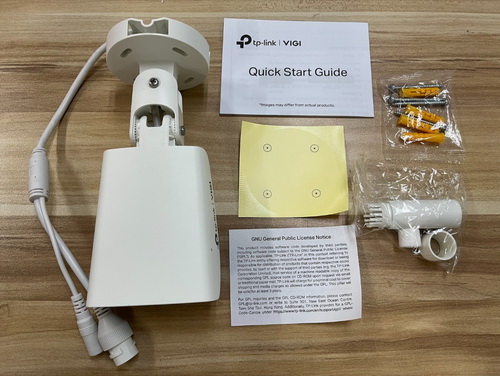

Package ContentsVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Dimensions( H X W X D )78 × 70 × 174 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Net Weight0.28 Kg
Gross Weight0.42 Kg
Power Consumption12V DC: Max 7.5W
PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
ProtectionIP67
Product Dimensions (L x W x H)78× 174 × 70 mm
CertificationsCE, RCM, BSMI, VCCI, RoHS, NTRA, KC
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio InputBuilt-in Microphone
Audio OutputBuilt-in Speaker
AlarmN/A
Reset ButtonYes
PowerDC Power Port
ButtonReset Button
SlotMicro SD card
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in SpeakerYes
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
VIDEO/IMAGE
Video CompressionMain stream: H.265+/H.265/H.264+//H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video StreamingMain Stream
Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart EventArea Intrusion Detection, Line-Crossing Detection, Human Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDQuantity: 2
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
LENS
TypeFixed Focal Lens
Focal Length2.8 mm/4 mm/6 mm
Aperture2.8 mm: F1.6
4 mm: F1.6
6 mm: F1.6
FOV2.8mm:
Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°

4mm:
Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

6mm:
Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°
Lens MountM12
DORI Distance2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

6 mm
Detect: 128 m (420 ft)
Observe: 53 m (175 ft)
Recognize: 26 m (84 ft)
Identify: 13 m (42 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: -90° to 90°,
Tilt: -90° to 90°
VIDEO
Max. Resolution2560 X 1440
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

Warranty:
2 Years
