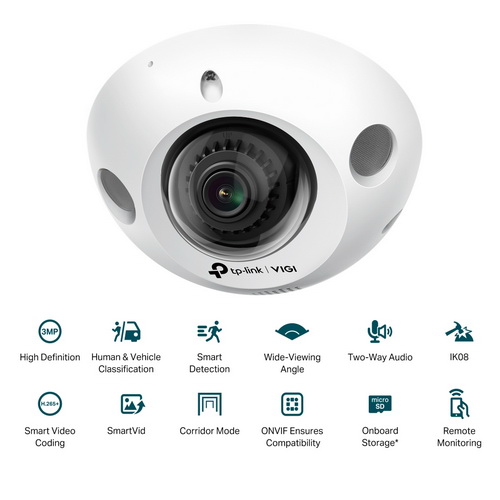

TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera (Lens: 2.8mm) | CCTV Camera (White)

Product Code: CAM-TPL-VIGI-C230IM

MYR179.00

Color
Size

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

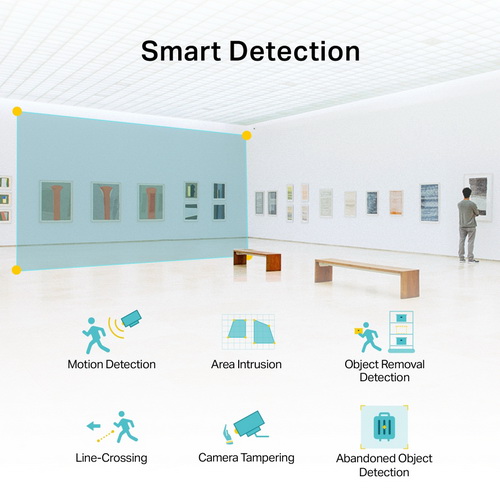

  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

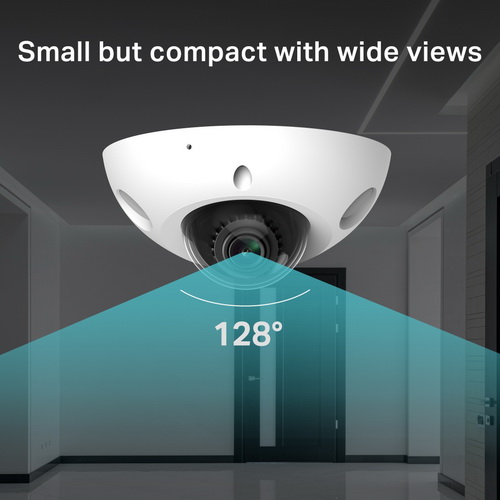

  • Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

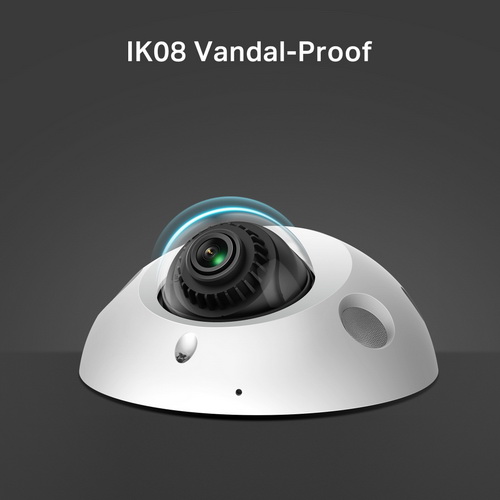

  • IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.

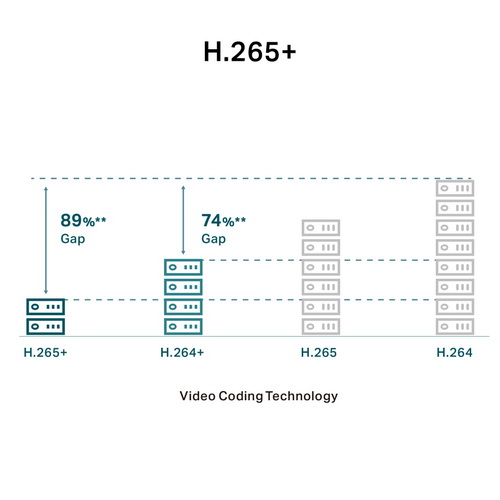

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

Specifications:

CAMERA
Image Sensor1/2.8” Progressive Scan CMOS
Lens2.8 mm
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
IR Working Distance30m
Shutter Speed1/3 to 1/10000 s
ApertureF1.6
Lens MountM12
Viewing AngleHorizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Slow ShutterYes
Minimum IlluminationColor: 0.1 Lux; 0 Lux with IR
Day/Night MechanismIR Cut Filter
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserOpen Network Video Interface (Profile S)
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
GENERAL
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentsVIGI Network Camera
Quick Start Guide
Mounting Accessories
Mounting Template
Dimensions( H X W X D )114 × 114 × 58 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.23 kg
Gross Weight0.41 kg
Power Consumption12V DC: Max 7.5W
PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal ResistantIK08
ProtectionIK08
Product Dimensions (L x W x H)114× 58× 114 mm
CertificationsCE/VCCI/BSMI/KC/ONVIF
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonYes
PowerDC Power Port
ButtonReset Button
Video Output-
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in MicrophoneYes
Built-in SpeakerYes
AudioN/A
ALARM AND EVENT MANAGEMENT
Smart EventHuman & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording, Message Push, Audible Warning
Linkage MethodN/A
Output NotificationMessage Push
VIDEO/IMAGE
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution3MP (2304 × 1296)
Video Streaming3 Main Streams
3 Sub-Streams
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule
SMART FEATURE-SET
Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
ILLUMINATOR
IR LEDQuantity: 2
Range: 30m
Wavelength: 850nm
White LEDN/A
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
LENS
TypeFixed Focal Lens
Focal Length2.8 mm
ApertureF1.6
FOV2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Lens MountM12
DORI Distance2.8mm ;
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
ANGLE ADJUSTMENT (MANUAL)
RangePan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
VIDEO
Max. Resolution2304 × 1296
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

Warranty:
2 Years
