Highlights:

• 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) and IGMP snooping function
• Plug and play ,no configuration needed

What This Product Does

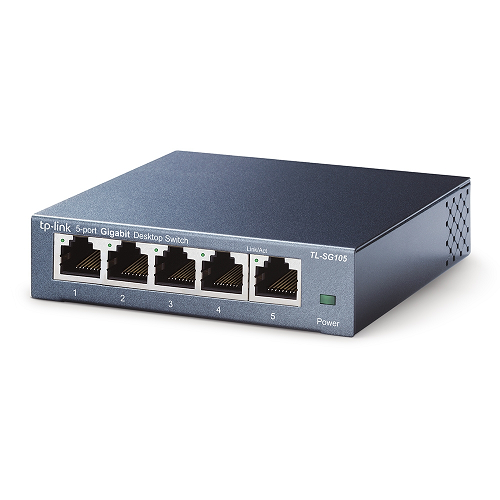

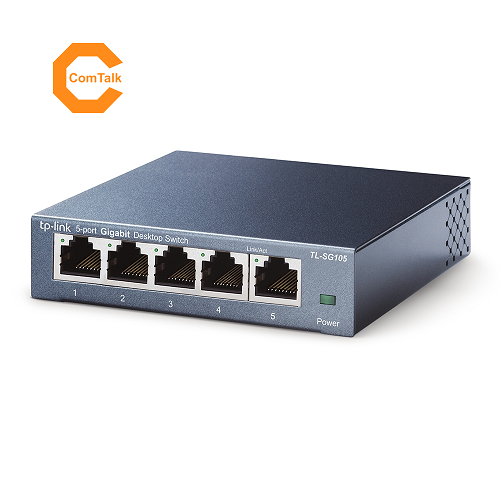

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

• Power down Idle Ports
  When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
• Power Budget According to Cable Length
  Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.

Features:

• Innovative energy-efficient technology saves power up to 65%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) and IGMP snooping function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Plug and Play design simplifies installation

Specifications:

Warranty:

3 Years
