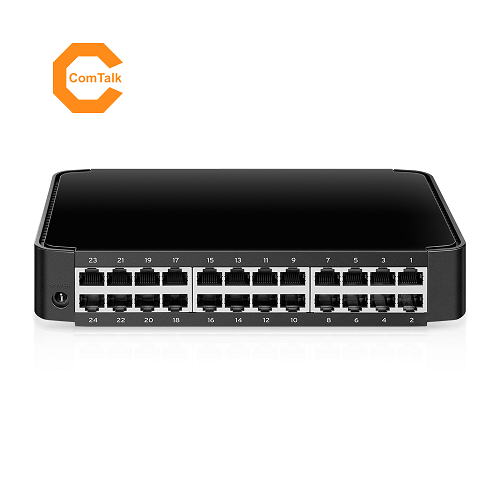

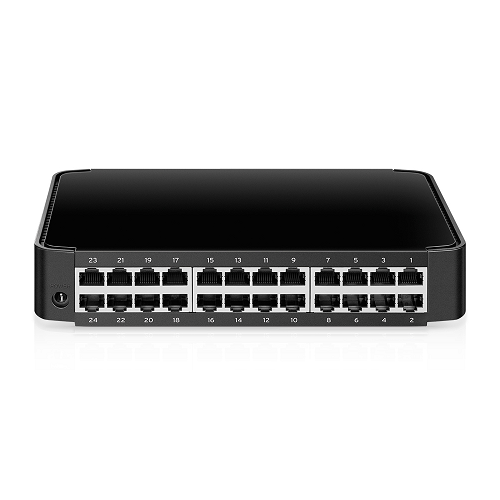

TP-Link TL-SF1024M 24-Port 10/100Mbps Desktop Switch

Product Code: NWS-TPL-TLSF1024M

MYR169.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:
  • 24 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

What This Product Does
The TL-SF1024M Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024M can save power consumption, making it an eco-friendly solution for your business network.

High Performance
TL-SF1024M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.

TP-LINK Green Technology
This new generation TL-SF1024M Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications:


HARDWARE FEATURES
Interface24 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan QuantityFanless
Physical Security LockNo
External Power SupplyExternal Power Adapter (Output: 9VDC / 0.6A)
Mac Address Table8K
Dimensions ( W x D x H )8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm)
Max Power Consumption3.36W(220V/50Hz)
Max Heat Dissipation11.46BTU/h
SOFTWARE FEATURES
Transfer MethodStore and Forward
Advanced FunctionsGreen Technology
802.3X Flow Control
OTHERS
CertificationFCC, CE, RoHs

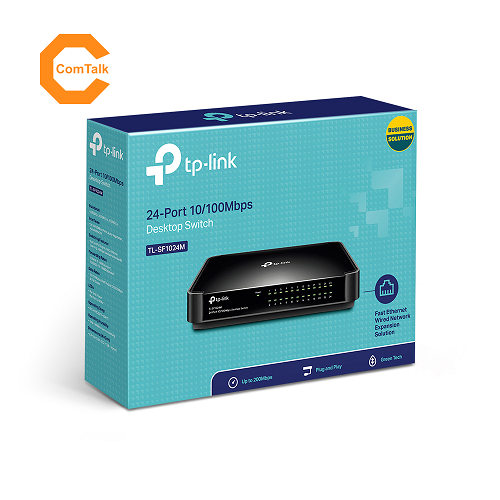

Package Contents24-Port 10/100Mbps Desktop Switch TL-SF1024M
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~60℃ (-40℉~140℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

Warranty:
3 Years
