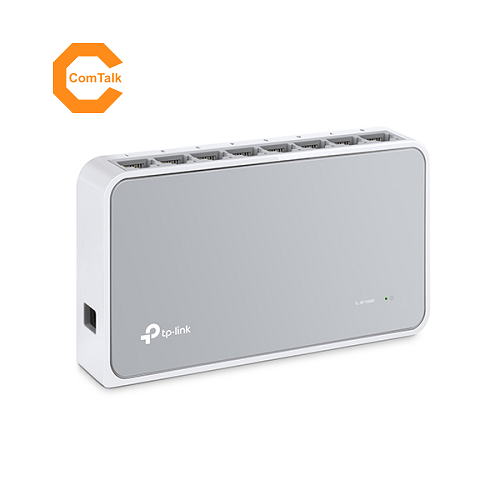

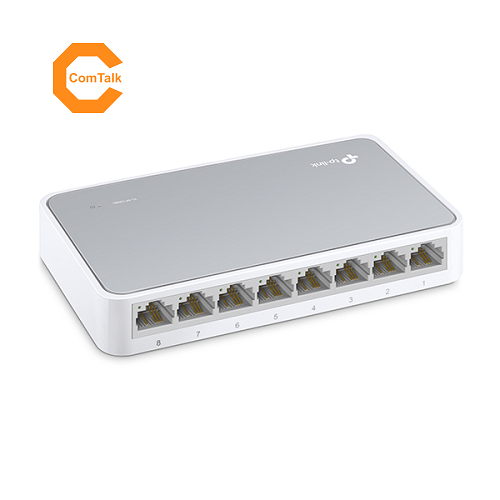

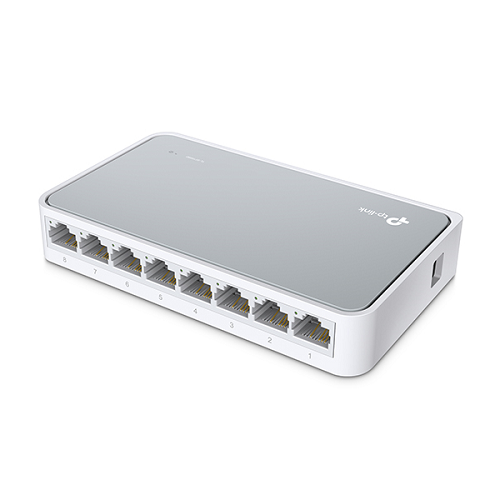

TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch

Product Code: NWS-TPL-TL-SF1008D

MYR49.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves the power up to 73%
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required



What This Product Does

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 73%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green Technology

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.



Features:

  • Innovative energy-efficient technology saves power up to 73%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop design
  • Plug and Play design simplifies installation



Specifications:



HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless
Power SupplyExternal Power Adapter(Output: 5.0VDC / 0.6A)
External Power Supply100-240VAC, 50/60Hz
Buffer Size768Kb
Data Rates10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED IndicatorPower, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H )5.3*3.1*0.9 in. (134.5*79*22.5mm)
Max Power Consumption2.05W(220V/50Hz)
Max Heat Dissipation6.99BTU/h
SOFTWARE FEATURES
Transfer MethodStore and Forward
Advanced FunctionsGreen Technology
802.3X Flow Control, Back Pressure
OTHERS
CertificationFCC, CE, RoHS
Package Contents8-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing



Warranty:

3 Years
