TP-Link ER706W Omada AX3000 Gigabit VPN Router

Product Code: WRT-TPL-ER706W

MYR599.00

Color

Brand: TP-Link

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz

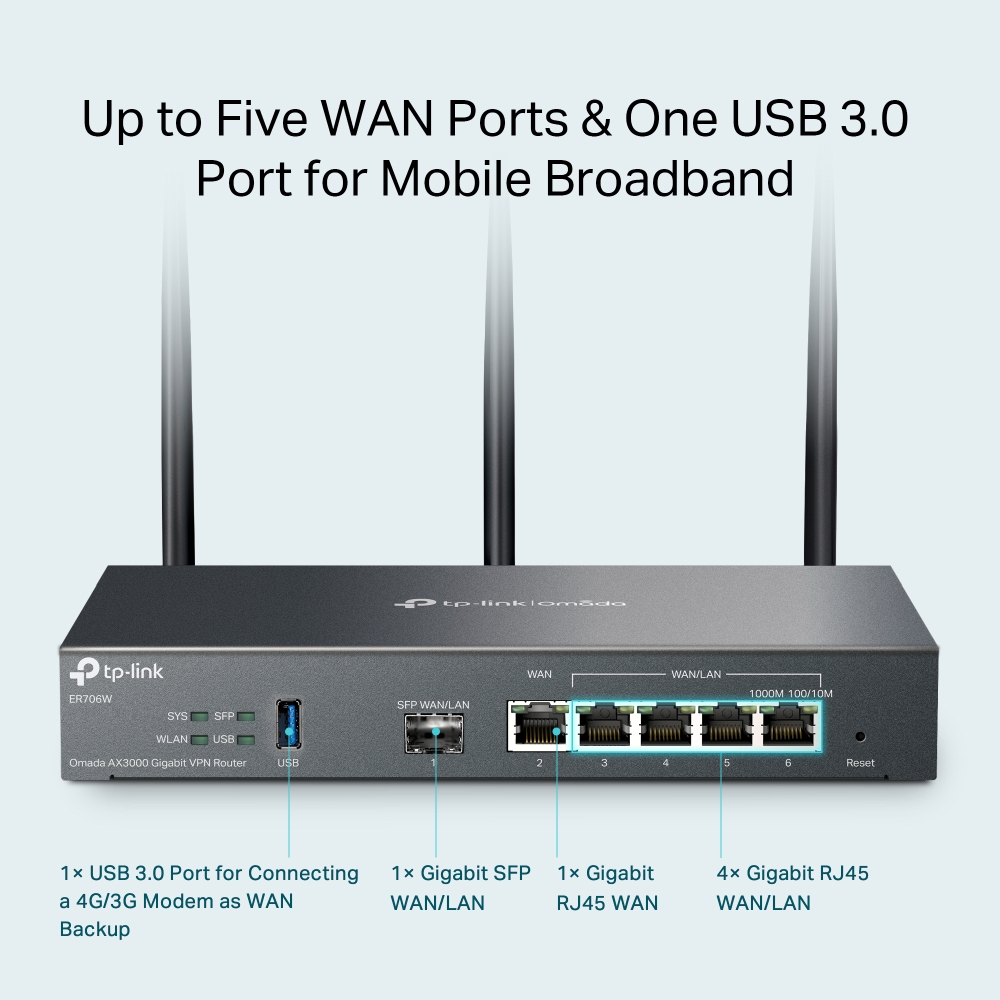

  • 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

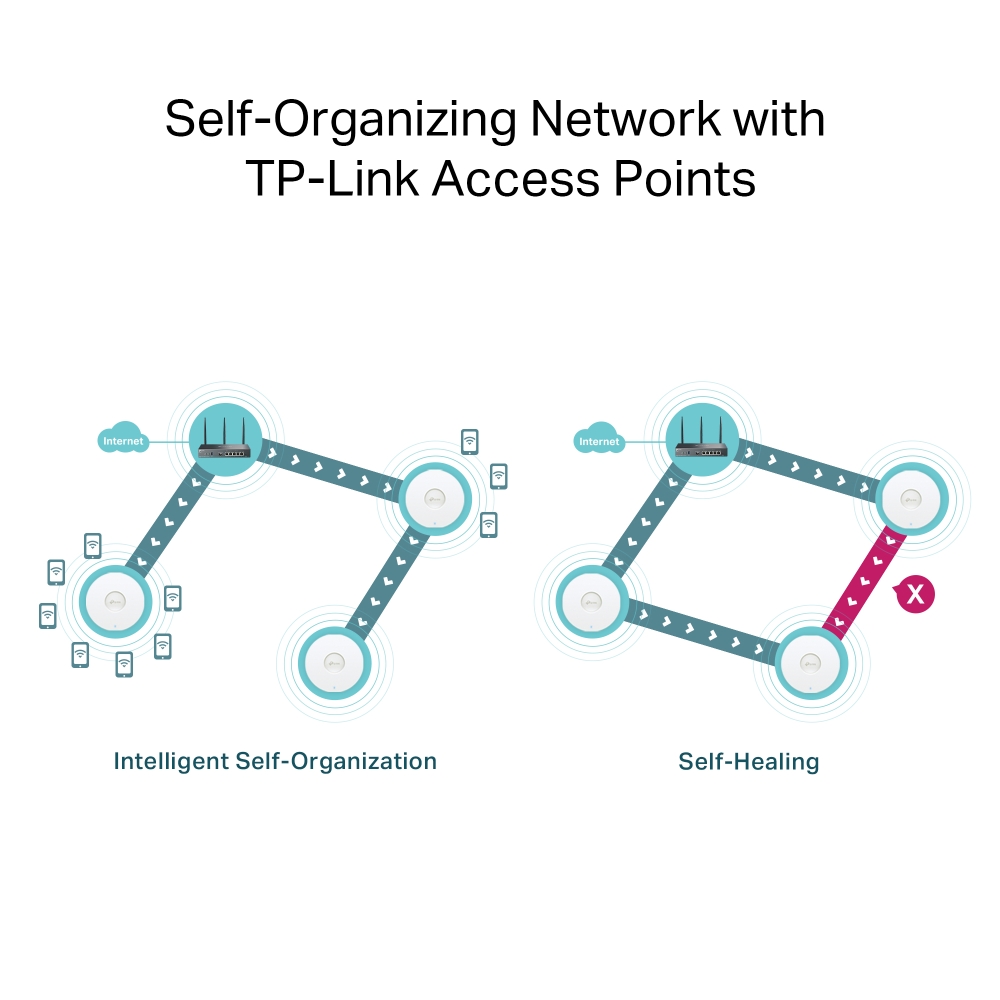

  • Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.

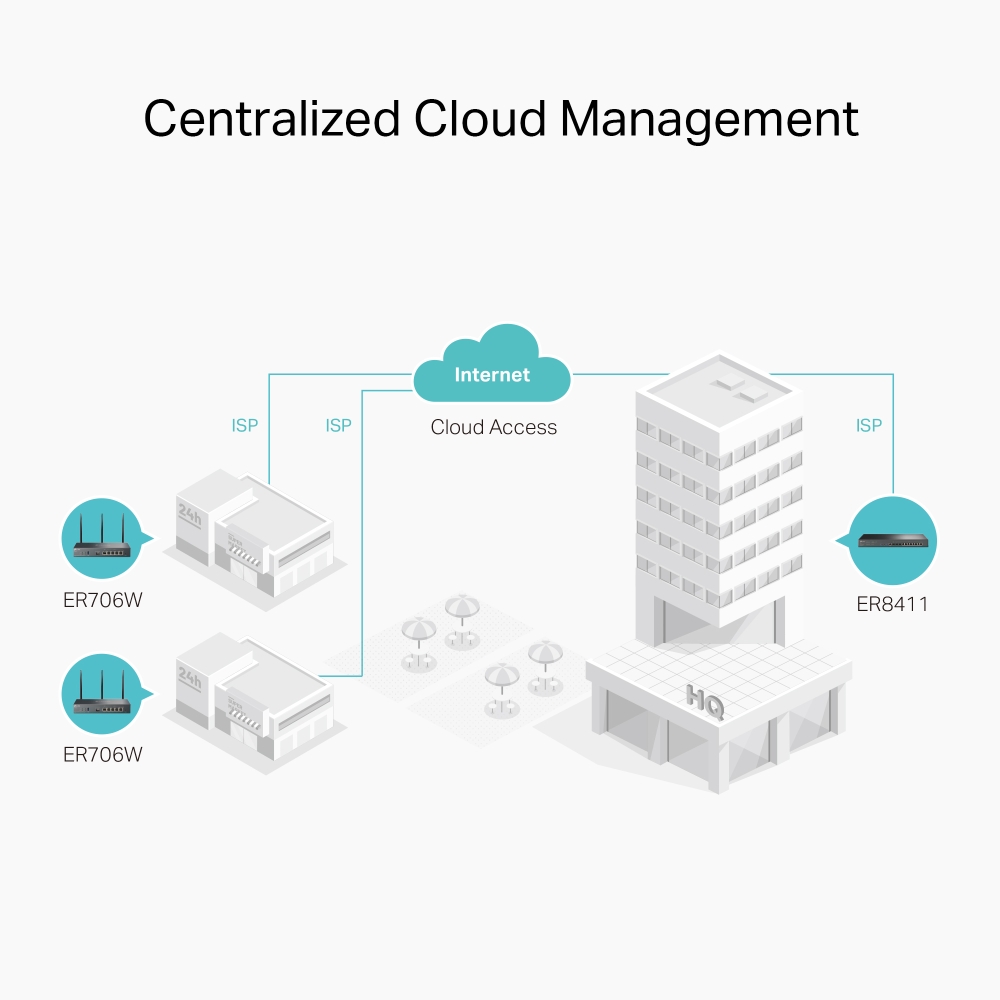

  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

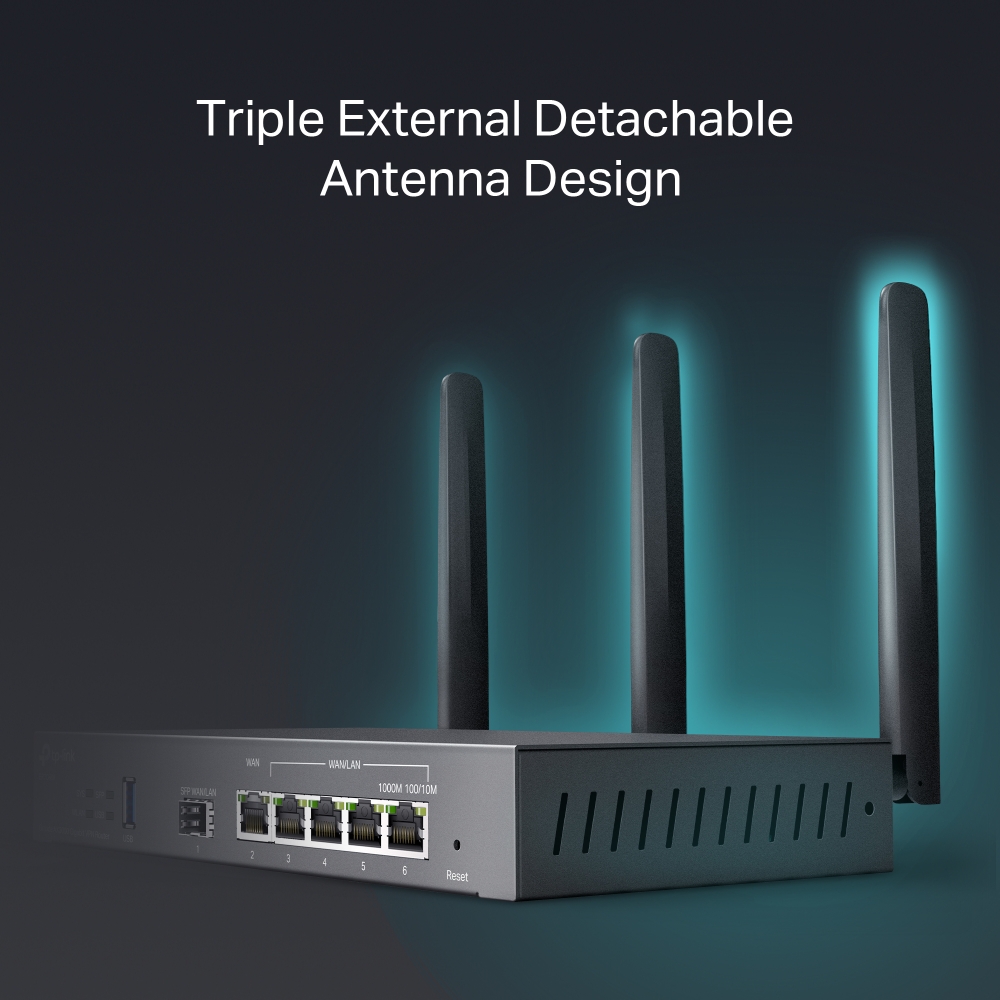

  • Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.

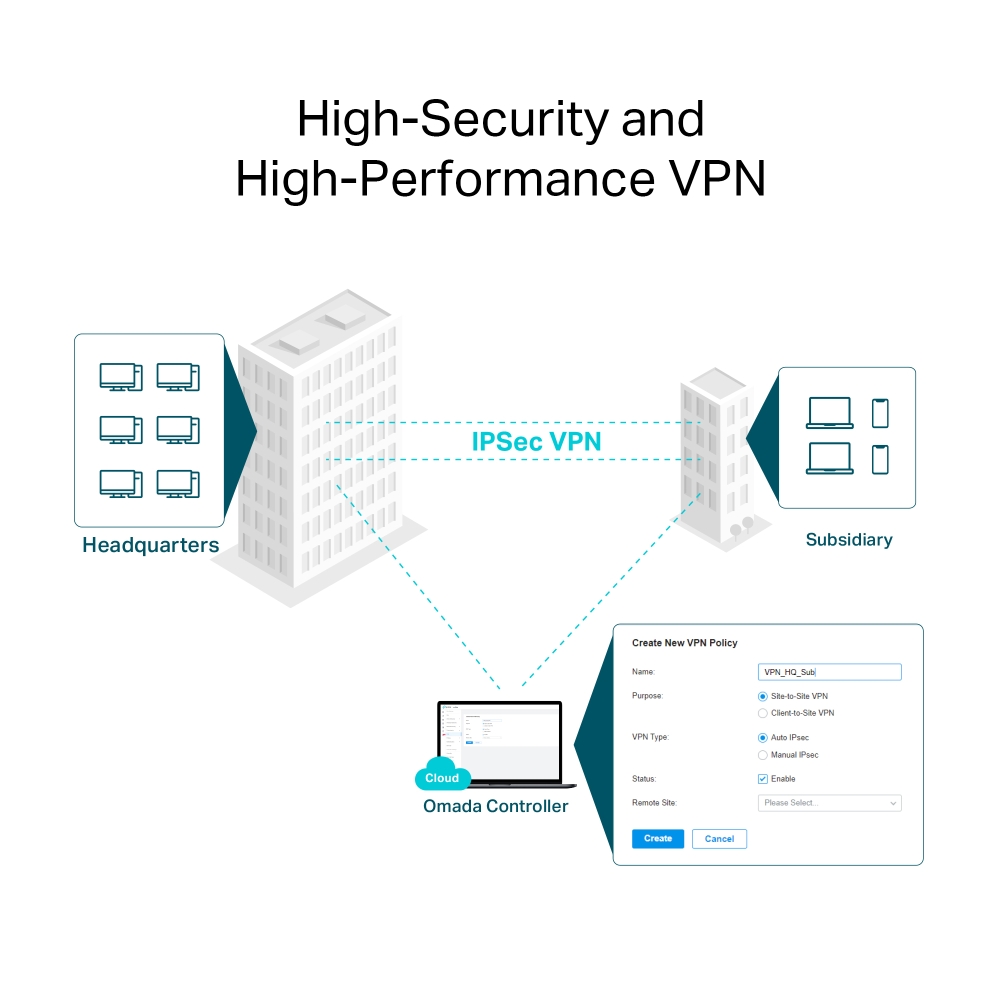

  • High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
  • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Specifications:

SECURITY
Access ControlSource/Destination IP Based Access Control
Filtering• Web Group Filtering
• URL Filtering
• Web Security
ARP Inspection• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack Defense• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Interface• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage)
ButtonReset Button
Power Supply12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash128 MB NAND
DRAM512 MB DDR4
Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included)
Antenna• 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas
MountingDesktop/Wall-mounting
Max Power Consumption• EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
• US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
PERFORMANCE
GRE• Unencrypted: 624.2Mbps
• Encrypted: 301.5Mbps
WireGuard VPN393.5Mbps
Concurrent Session150,000
New Sessions /Second5,100
NAT (Static IP)937.2 Mbps / 936.1Mbps
NAT(DHCP)945.8 Mbps / 940.6Mbps
NAT(PPPoE)942.9 Mbps / 942.9Mbps
NAT (L2TP)837.4 Mbps / 881.5Mbps
NAT (PPTP)803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput• ESP-SHA1-AES256: 646.9Mbps
• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps
OpenVPN129.3Mbps
L2TP VPN Throughput• Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps
PPTP VPN Throughput• Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps
SSL VPN Throughput126.7Mbps
66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate81,274 pps / 91,275 pps
WIRELESS FEATURES
Advanced Functions• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest NetworkSupport
BASIC FUNCTIONS
WAN Connection Type• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC CloneModify WAN Address
DHCP• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACLIP/Port/Protocol/Domain Name Filtering
Advanced Routing• Static Routing
• Policy Routing
• RIP
• OSPF
Bandwidth ControlIP-Based Bandwidth Control
Load Balance• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session LimitIP-Based Session Limit
VPN
SSL VPN50 Tunnels
IPsec VPN• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication• No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP
MANAGEMENT
Omada AppYes.
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud AccessYes.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS
Customization)
Maintenance• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch ProvisioningYes. Require the use of Omada Cloud-Based Controller.
Management Features• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
CertificationCE, FCC, RoHS
Package Contents• ER706W
• Power Adapter
• Quick Installation Guide
System Requirements• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Warranty:
5 Years
