Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
With two high gain antennas, Archer T4U greatly extends Wi-Fi range and coverage compared to typical wireless adapter. A stable Wi-Fi network across your home makes for an ideal surfing experience.
Thanks to MU-MIMO technology, Archer T4U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T4U ideal for HD streaming, online gaming and large file downloads.
Highlights:
- Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
- High gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- WPS Button - Easy wireless security encryption at the push of the WPS button
Specifications:
HARDWARE FEATURES |
---|
Interface | USB 3.0 |
---|
Button | WPS button |
---|
Dimensions ( W x D x H ) | 3.6×1.2×0.6 in. (92.2×29×14.6mm) |
---|
Antenna | 2 High Gain External Antennas |
---|
Antenna Type | Omni Directional |
---|
WIRELESS FEATURES |
---|
Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
---|
Frequency | 5GHz 2.4GHz |
---|
Signal Rate | 5GHz 11ac: Up to 867Mbps(dynamic) 11n: Up to 300Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 400Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
---|
Reception Sensitivity | 5GHz: 11a 6Mbps: -88dBm 11a 54Mbps: -71dBm 11nHT20:-63dBm 11nHT40:-61dBm 11ac HT20: -65dBm 11ac HT40: -60dBm 11ac HT80: -56dBm 2.4GHz: 11b 11Mbps: -90dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -68dBm |
---|
Transmit Power | <20dBm (EIRP) |
---|
Wireless Modes | Ad-Hoc / Infrastructure mode |
---|
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
---|
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
---|
OTHERS |
---|
Certification | CE, FCC, RoHS |
---|

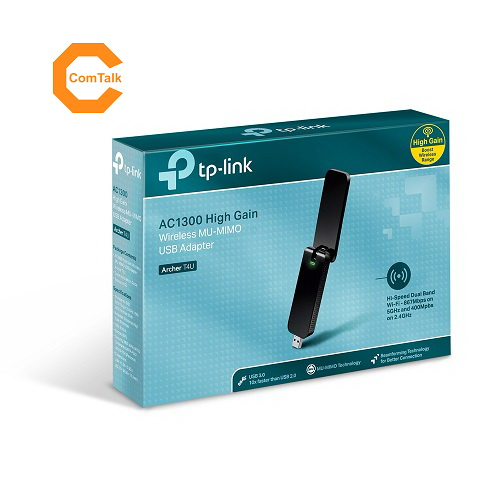

Package Contents | AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U Quick Installation Guide Resource CD |
---|
System Requirements | Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13 |
---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
---|
Warranty:
3 Years
