The Archer T2U Nano receives Wi-Fi signals on two separate bands. Supporting 256QAM technology increases 2.4GHz data rate from 150Mbps to 200Mbps for 33% faster performance. 433Mbps on 5GHz is ideal for HD video streaming and lag-free online gaming, while 200Mbps on 2.4GHz is perfect for normal use such as web surfing with legacy devices.
With its miniature size and sleek design, users can insert the nano adapter into any USB port and leave it there, no matter when they are traveling or at home.
Archer T2U Nano supports Wi-Fi Roaming that helps your devices connect to the most suitable Wi-Fi automatically as you move, ensure your network is uninterrupted, and with its small, travel-size, Archer T2U Nano is undoubtedly a great choice for mobile surfing.
Specifications:
HARDWARE FEATURES |
---|
Interface | USB 2.0 |
---|

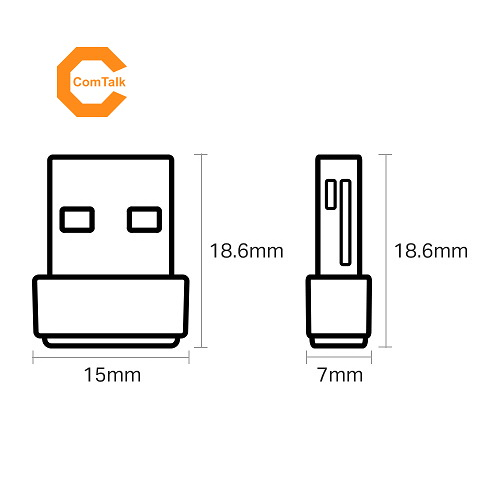

Dimensions ( W x D x H ) | 15*7.1*18.6mm |
---|
Antenna Type | Omni Directional |
---|
WIRELESS FEATURES |
---|
Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
---|
Frequency | 5GHz 2.4GHz
|
---|
Signal Rate | 5GHz 11ac: Up to 433Mbps(dynamic) 11n: Up to 150Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 200Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
|
---|
Reception Sensitivity | 5GHz: 11a 6Mbps: -90dBm 11a 54Mbps: -73dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -67dBm 11ac VHT80 MCS0: -82dBm 11ac VHT80 MCS9: -56dBm 2.4GHz: 11b 1Mbps: -96dBm 11b 11Mbps: -88dBm 11g 6Mbps: -89dBm 11g 54Mbps: -74dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -72dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -66dBm
|
---|
Transmit Power | <20dBm (EIRP) |
---|
Wireless Modes | Ad-Hoc / Infrastructure mode |
---|
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
---|
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
---|
OTHERS |
---|
Certification | CE, FCC, RoHS |
---|
Package Contents | AC600 Nano Wireless USB Adapter Archer T2U Nano Resource CD Quick Installation Guide
|
---|
System Requirements | Windows 10/8.1/8/7/XP (32/64bits), Mac OS X 10.9-10.13
|
---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
---|
Warranty:
3 Years
