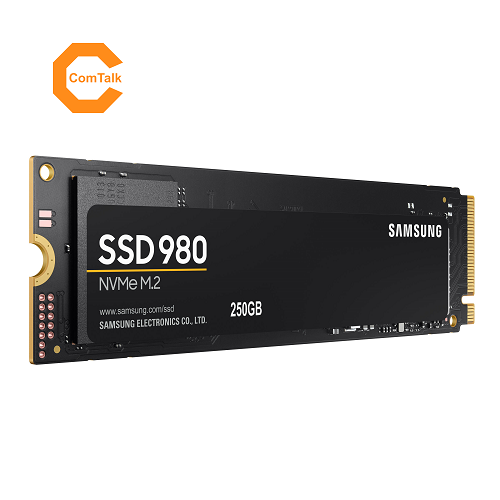

Samsung SSD 980 NVMe M.2 2280 (250GB/500GB/1TB)

Product Code: SSD-SAM-980NVMEM2

+ Add to Wishlist

MYR349.00

Size

1 TB ✓

250 GB ✓

500 GB ✓

Add To Cart

Brand: Samsung

Get shipping estimates

Country

State

Shipping Method

Product Details

Highlights:

M.2 2280 Form Factor
PCIe Gen 3.0x4, NVMe 1.4 Interface
Samsung V-NAND 3-bit MLC Storage Memory

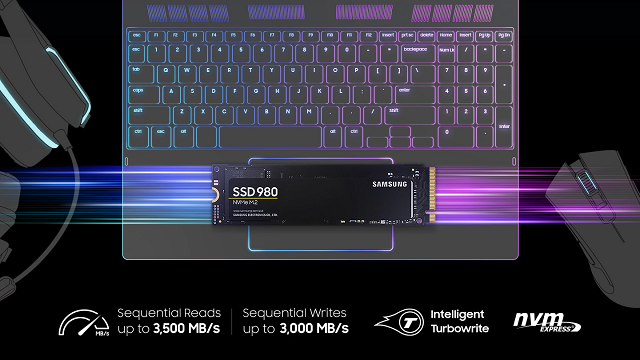

Sequential Read Speed Up to 3,500 MB/s
Sequential Write Speed Up to 3,000 MB/s

Features:

Upgrade to breathtaking NVMe speed

It's time to maximize your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance, and it's all backed by an NVMe™ interface and PCIe® 3.0 technology.

Packed with speed

Get right to it. The 980 harnesses nearly all the speed advantages of PCIe® 3.0 through HMB technology and dramatic NVMe™ efficiency.

The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.

Keep moving with Full Power Mode

Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

Built for the long run

Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimized endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.

Reliable thermal control

High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Smart thermal solution

Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980’s temperature at optimal levels.

Samsung Magician software

Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

Specifications:

Model Code (Capacity)¹⁾

MZ-V8V250BW (250GB)
MZ-V8V500BW (500GB)
MZ-V8V1T0BW (1TB)

General Feature

APPLICATION
Client PCs
FORM FACTOR
M.2 (2280)
INTERFACE
PCIe^® Gen 3.0 x4, NVMe™ 1.4
DIMENSION (WxHxD)
80.15 x 22.15 x 2.38 (mm)
WEIGHT
Max 8.0 g
STORAGE MEMORY
Samsung V-NAND 3-bit MLC
CONTROLLER
Samsung In-House Controller
CACHE MEMORY
HMB(Host Memory Buffer)

Special Feature

TRIM SUPPORT
Supported
S.M.A.R.T SUPPORT
Supported
GC (GARBAGE COLLECTION)
Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT
AES 256-bit Encryption (Class 0)
TCG/Opal IEEE1667 (Encrypted drive)
WWN SUPPORT
Not Supported
DEVICE SLEEP MODE SUPPORT
Yes

Performance²⁾

SEQUENTIAL READ
250GB: Up to 2,900 MB/s
500GB: Up to 3,100 MB/s
1TB: Up to 3,500 MB/s
SEQUENTIAL WRITE
250GB: Up to 1,300 MB/s
500GB: Up to 2,600 MB/s
1TB: Up to 3,000 MB/s
RANDOM READ (4KB, QD32)
250GB: Up to 230,000 IOPS
500GB: Up to 400,000 IOPS
1TB: Up to 500,000 IOPS
RANDOM WRITE (4KB, QD32)
250GB: Up to 320,000 IOPS
500GB: Up to 470,000 IOPS
1TB: Up to 480,000 IOPS
RANDOM READ (4KB, QD1)
250GB: Up to 17,000 IOPS
500GB: Up to 17,000 IOPS
1TB: Up to 17,000 IOPS
RANDOM WRITE (4KB, QD1)
250GB: Up to 53,000 IOPS
500GB: Up to 54,000 IOPS
1TB: Up to 54,000 IOPS

Environment

AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)³⁾
250GB: Average 3.7 W Maximum 5.6 W (Burst mode)
500GB: Average 4.3 W Maximum 5.9 W (Burst mode)
1TB: Average 4.6 W Maximum 5.3 W (Burst mode)
POWER CONSUMPTION (IDLE)³⁾
Max. 45 mW
POWER CONSUMPTION (DEVICE SLEEP)
Max. 5 mW
ALLOWABLE VOLTAGE
3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF)
1.5 Million Hours Reliability
OPERATING TEMPERATURE
0 - 70 ℃
SHOCK
1,500 G & 0.5 ms (Half sine)

Accessories

INSTALLATION KIT
Not Available

Software

INSTALLATION KIT
Magician Software for SSD management

Warranty

MZ-V8V250BW (250GB)
5 Years or 150 TBW
MZ-V8V500BW (500GB)
5 Years or 300 TBW
MZ-V8V1T0BW (1TB)
5 Years or 600 TBW

¹⁾Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
²⁾Performance may vary based on system hardware & configuration
³⁾Actual power consumption may vary depending on system hardware & configuration
