Highlights:
- 2.5-inch Form Factor
- V-NAND SSD
- 560MB/s Seq. Read
- 530MB/s Seq. Write
Features:
Go big, do more

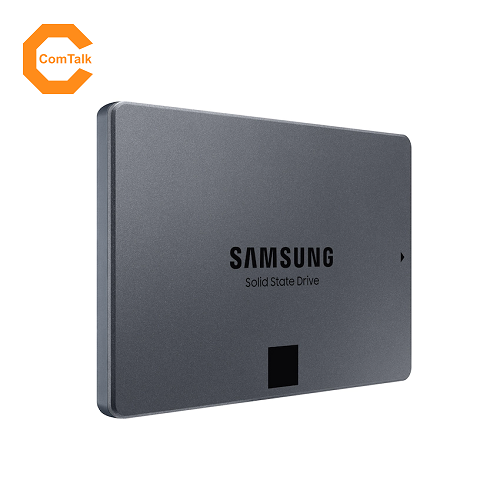

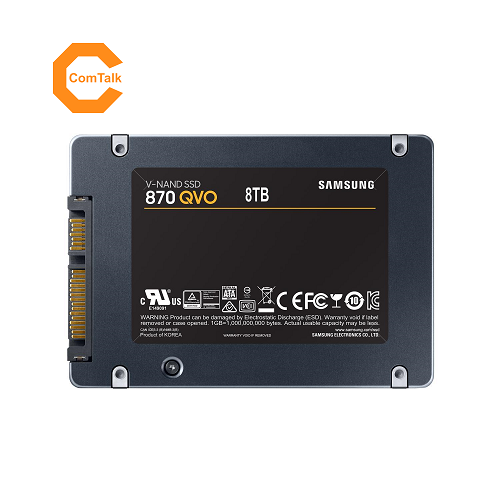

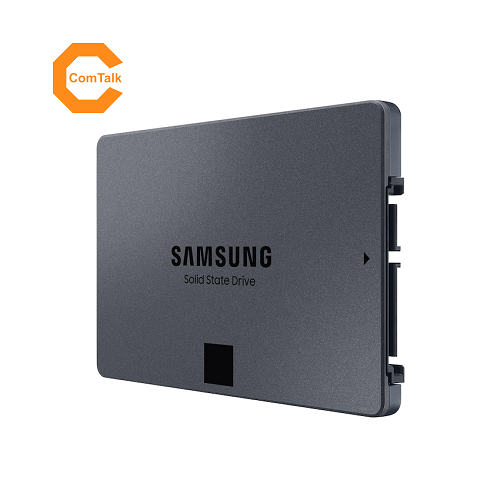

The 870 QVO is Samsung’s latest 2nd gen. QLC SSD and the largest of its kind that provides up to 8TB of storage*. Offering an incredible upgrade for everyday PC users who want to ramp-up their desktop PC or laptop to the largest available storage in the market* without compromising on performance.
*8TB is the largest Client SATA SSD as of 8/31/2020.
Enhanced in every way
With an expanded SATA interface limit of 560/530 MB/s sequential speeds, the 870 QVO improves random access speed and sustained performance. Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.
Boost capacity
The 870 QVO is now available in 1, 2, 4 and 8TB. The 8TB model is by far the largest client SATA SSD. Upgrade to the latest in SATA SSD technology to thrive in today’s digital world.
Reliable and sustainable
The groundbreaking capacity of the 870 QVO doubles
its reliability from 1,440 TBW to up to 2,880 TBW, using a refined ECC (error-correcting code) algorithm for stable performance. Plus, it's backed by a limited 3 year warranty* for ultimate peace of mind.
Upgrade with ease
Upgrading to 870 QVO is now easier than ever for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Simply plug in the 870 QVO into a SATA slot and let the updated migration software take care of the rest.
Samsung Magician software
Keep your SSD in check with Samsung Magician 6.1 software. Manage your drive and enhance its performance with a wide range of useful tools to keep up with the latest updates and monitor the drive's health and status.
Specifications:
General Feature
Product Type
870 QVO SATA III 2.5" SSD (1TB, 2TB, 4TB, 8TB)
Family Line
870 QVO SATA III 2.5" SSD
Capacity
1TB, 2TB, 4TB, 8TB
Compatibility
Windows10/Windows 8/Windows 7/Windows Server 2003 (32 bit and 64 bit), Vista (SP1 and above), XP (SP2 and above), MAC OSX and Linux
Performance
Speed
Read/write speeds of up to 560/530 MB/s
Encryption
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Type
Product Type
SATA SSD
Storage Type
Internal
Interface
SATA 6 Gb/s Interface
Read/Write Speeds
up to 560/530 MB/s
Usage Application
Client PCs
Storage
Capacity
1TB, 2TB, 4TB, 8TB
Key Features
Sequential Read Speed
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Compatibility
Compatible with SATA 3 Gbps & 1.5 Gbps interfaces
Cache Memory
Samsung 1 GB Low Power DDR4 SDRAM
Trim Support
TRIM Supported
Security
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
S.M.A.R.T. Support
S.M.A.R.T Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
World Wide Name supported
Device Sleep Mode Support
Yes
General
Average Power Consumption (system level)
Average: 2.2 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Shock
1,500 G & 0.5 ms (Half sine)
Form Factor
Product
2.5 inch
Dimensions (W x H x D)
Product
3.94" X 2.76 " X 0.27"
Weight
Product
0.19 lbs.
Warranty
Product
* Limited warranty up to 3 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support
Model & Capacity
Part No.: MZ77Q1T0BW (1TB)
Part No.: MZ77Q2T0BW (2TB)
Part No.: MZ77Q4T0BW (4TB)
Part No.: MZ77Q8T0BW (8TB)
