Model

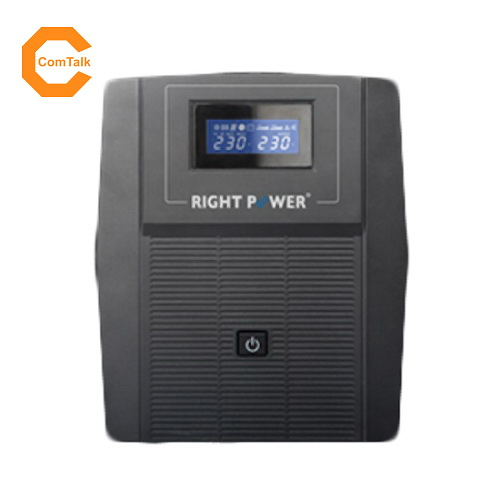

PowerTank F1500P

CAPACITY (VA)

1500VA

INPUT

INPUT VOLTAGE

220V/230V/240V

VOLTAGE RANGE

162 - 290VAC

FREQUENCY RANGE

50Hz or 60Hz

OUTPUT

OUTPUT VOLTAGE

220V/230V/240V

AC VOLTAGE REGULATION (Batt. Mode)

± 10%

OUTPUT FREQUENCY

50Hz or 60Hz +/-1%

WAVEFORM

Simulated Sinewave

TRANSFER TIME (Typical)

4ms

OUTPUT SOCKET

4 x British Socket c/w Safety Window

BATTERY

SEALED LEAD ACID MAINTENANCE FREE

12V 7.5Ah x 2

BACK UP TIME (Depending on Load)

20 to 30 Minutes

STATUS INDICATOR

LCD DISPLAY

Input Voltage, Output Voltage, Battery Capacity, Load Level, UPS Status

AUDIBLE ALARM

On Battery, Low Battery, Overload, UPS Fault

COMMUNICATION

POWER MANAGEMENT SOFTWARE

Support Windows Family, Linux & MAC

INTERFACE

USB Port

SURGE PROTECTION & FILTERING

EMI/RFI NOISE FILTER

Yes

LIGHTNING/SURGE PROTECTION

Yes

OVERLOAD PROTECTION

Breaker / Fuse

PHONE/FAX/MODEM/NETWORK PROTECTION

RJ45 (1 in 1 out)

PHYSICAL

OPERATING ENVIRONMENT

0-40℃, 0-90% Relative Humidity (Non-Condensing)

NOISE LEVEL

Less than 45dB

DIMENSION (D x W x H)mm

298 x 148 x 178

WEIGHT (KG)

9.1

WARRANTY

UPS WARRANTY

3 Years Full Warranty include Parts & Labour

2 Years Warranty for Battery
