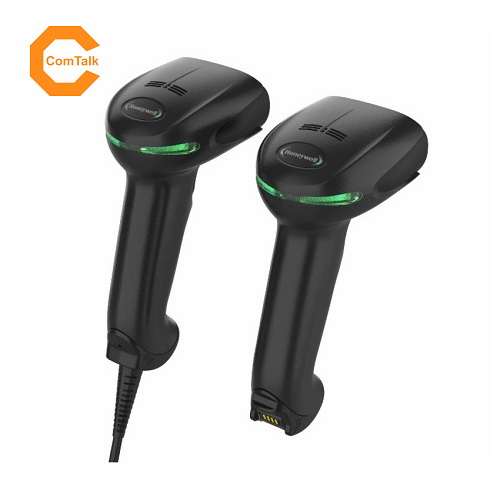

The Xenon™ XP 1950 series scanners deliver premium performance and class-leading durability for improved employee productivity and maximum uptime – leading to a lower TCO. Designed for retail environments that demand high-accuracy scanning, whether at a distance, or even on damaged barcodes, the Xenon XP 1950g scanner reduces strain on the associate – decreasing the need to bend to reach barcodes on the bottom shelf or bottom of the basket.

Highlights:

• Fast, Accurate Scanning
• Best-in-Class Durability
• Accurate 1D and 2D Scans
• Easy Software Updates

Features:

• Superior scanning performance, even on damaged and poor-quality barcodes, eliminates wasted seconds from every transaction.
• Engineered to withstand 2,000 0.5 m (1.6 ft) tumbles and 50 1.8 m (6 ft) drops, the scanner brings classleading durability and reliability to any environment.
• The scanner is optimized for scanning both digital codes off customer smartphones and merchandise codes by the cashier at the register.
• Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
• The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.

Specifications:

MECHANICAL/ELECTRICAL

Dimensions (L x W x H)
99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)

Scanner Weight
160 g (5.6 oz)

Input Voltage
4.4V DC – 5.5V DC

Operating Power (Charging) Bases
2.5W (500 mA @ 5V DC)

Host System Interfaces
USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX

User Indicators
Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional)

ENVIRONMENTAL

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD) (Scanners and Cradles)
±8 kV indirect coupling plane, ±15 kV direct air

Humidity
0% to 95% relative humidity, non-condensing

Tumble
2,000 0.5 m (1.6 ft) tumbles (impacts)

Drop
Engineered to withstand 50 1.8 m (6 ft) drops to concrete

Environmental Sealing
IP41

Light Levels
0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern
Area Image (1280 x 800 pixel array)

Motion Tolerance
Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus

Scan Angle
SR: Horizontal: 48°; Vertical: 30°
HD: Horizontal: 48°; Vertical: 30°

Print Contrast
20% minimum reflectance difference

Roll, Pitch, Skew
±360°, ±45°, ±65°

Decode Capabilities
Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration

P/N: 1950GHD-2USB-A

Package Contents:
1 x 1950g Black Scanner
1 x USB Type A 3m Straight Cable

Warranty:
5 Years
