We designed the Voyager™ Extreme Performance (XP) 1470 series scanner for in-store retail workflows that require a highly accurate 1D/2D scanning solution in a durable form factor. Trust it for industry-leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.

Highlights:

• Fast, Accurate Scanning
• A Good Read Every Time
• Best-in-Class Durability
• Integrated Analytics
• Easy Software Updates

Specifications:

MECHANICAL

Dimensions (LxWxH)
1470g: 62 mm x 169 mm x 82 mm (2.4 in x 6.6 in x 3.2 in)

Weight
1470g: 130g (4.6 oz)

ELECTRICAL

Input Voltage
4.0V DC to 5.5V DC

Operating Power
1470g: 2 W (400 mA @ 5V DC)

Standby Power
1470g: 0.45 W (90 mA @ 5V DC)

Host System Interfaces
1470g: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

User Indicators
Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration adjustable), Charge Status Indicator

ENVIRONMENTAL

Operating Temperature
1470g: 0°C to 50°C (32°F to 122°F)

Storage Temperature
1470g: -40°C to 60°C (-40°F to 140°F)

Electrostatic Discharge (ESD) (Scanners and Cradles)
±8 kV indirect coupling plane, ±15 kV direct air

Humidity
Up to 95% relative humidity, non-condensing

Drop
Designed to withstand 30 1.8 m(6 ft) drops to concrete

Tumble
Designed to withstand 1,000 tumbles from 0.5 m (1.64 ft)

Environmental Sealing
1470g: IP40

Light Levels
0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern
Area Image (1040 x 720 pixel array)

Motion Tolerance
70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Scan Angle
Horizontal: 39.2° nominal
Vertical: 27.4° nominal

Roll, Pitch, Skew
±180°, ±65°, ±70°

Barcode Types
Reads standard 1D, PDF, 2D, and DotCode symbologies

Note
Decode capabilities dependent on configuration.

DECODE RANGES

* Performance may be impacted by barcode quality and environmental conditions.

** Data Matrix (DM)

P/N: 1470G2D-2USB-1-A

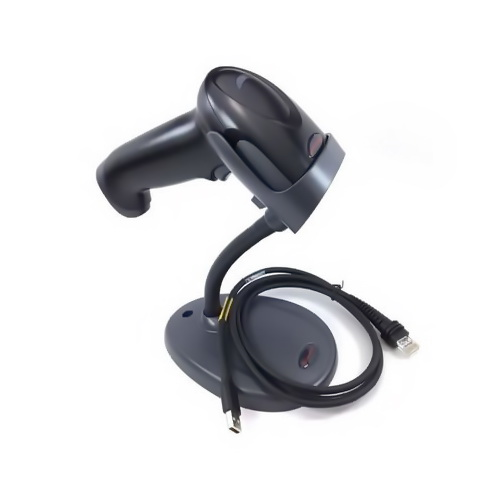

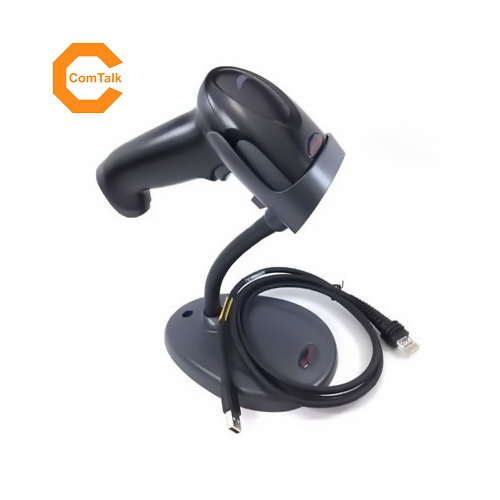

Package Contents:
1 x Black Scanner (1470g2D-2)
1 x Flexible Presentation Stand (STND-15F03-009-4)
1 x USB Type A 1.5m Straight Cable (CBL-500-150-S00)

Warranty:
5 Years
