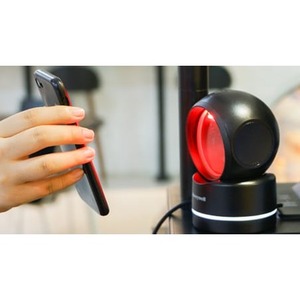

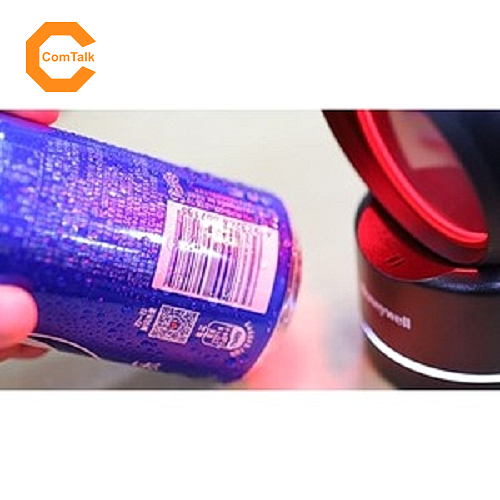

Honeywell Orbit HF680 is a 2D hands-free/presentation scanner that is the perfect blend of affordability, performance, and style. Retailers no longer have to compromise their budgets to get scanning performance in a modern design. And it’s perfect for customers looking to upgrade their 1D Orbit 7120s scanners to 2D.
- Faster Scanning
- Simplify Scanner Integration
- Modern Styling with Great Price
Specifications
PHYSICAL
Dimensions (L × W × H)
85 mm × 88 mm × 139 mm
Weight
278 +/-10g
ELECTRICAL
Input voltage
5 VDC ±0.5V
Working
2.0 W (400 mA @ 5V)
Standby
0.85 W (170 mA @ 5V)
Host interface
USB, RS-232
ENVIRONMENTAL
Operating temperature
-10°C to 40°C (14°F to 104°F)
Storage temperature
-40°C to 60°C (-40°F to 140°F)
Humidity
0% to 95%RH, no condensation
Drop
Designed to withstand 1 m drops
Illuminance
0-100,000 Lux
SCANNING PERFORMANCE
DPI
1280 × 800 pixel
Motion tolerance
Up to 2.5 m/s for 13 mil UPC at optimal focus
Scan angle
Horizontal: 47°;
Vertical: 30°
Print Contrast
20% minimum reflectance difference
Pitch, Skew
+/-60°, +/-70°
Decode Capability
Reads standard 1D, PDF, 2D Symbologies
Warranty
3-year factory warranty
Part Number: HF680-R1-1USB
