An efficient business begins with Epson’s TM-T82. With Epson’s advanced printing technology, discover reliability and functionality that ensures an easy printing solution for all users. Designed with an adaptable mounting capability, the TM-T82 allows for versatile placement even in the smallest environment. Make the TM-T82 the perfect companion for your business today.

Highlights:

• Thermal Output
• Compactly designed
• Speed: Up to 150mm/sec
• Selectable Paper Width

Features:

Unrivalled Performance
With a MCBF of 60 million lines, an auto cutter life of 1.5 million cuts, and receipt printing speed of up to 150mm/s, the TM-T82 delivers best-in-class reliability so critical in high volume environments.

Ease-of-use
The TM-T82 comes with drop-in paper loading, auto cutter and status LEDs. It also offers optional printer placements including horizontal or upright for front receipt dispensing or vertical wall placement using a special hanging bracket. In addition, the T82 features paper saving options, crisp, clear printing of logos, coupons and barcodes.

All-in-one Box Convenience
All of the necessary drivers and accessories are included in the box. Such as the printer driver, utility software, manuals, interface cable, wall hanging bracket, rubber feet, switch panel for vertical installation, and a water-proof power switch cover. The CD-ROM includes drivers for Windows® / Linux® / Mac OS® X, virtual port driver, OPOS™, OPOS for .NET™, and Java POS™.

Specifications:

Safety Standards:

Safety Standards: India IS 13252-2010

Print Font:

Font: 9 x 17 / 12 x 24, Hanji Font: 24 x 24, Thai Font: 9 x 35 / 12 x 46 (Thai 1 pass) Character Size (W x H): 0.88 x 2.13 mm / 1.25 x 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 4.38 mm / 1.25 x 5.76 mm (Thai 1 pass) Character Set: 95 Alphanumeric, 18 set International, 128 x 43 pages (including user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology Characters Per Line: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Data Buffer:

Data Buffer: 4KB or 45bytes

Paper:

Width and Roll Diameter: 79.5 ± 0.5 (W) × dia. 83.0; 57.5 ± 0.5 (W) × dia. 83.0

Overall Dimensions (D x W x H):

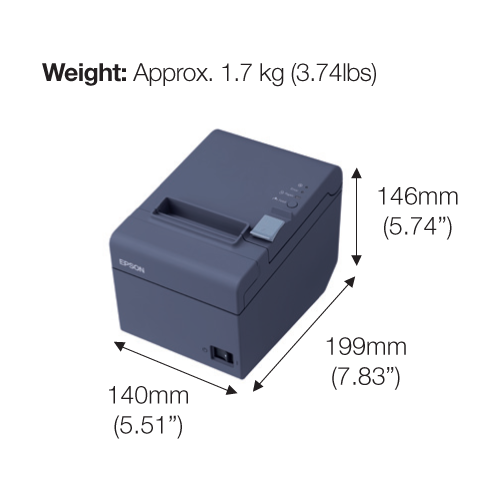

Overall Dimensions (D x W x H): 199 x 140 x 146 mm

Printing Method:

Printing Method: Thermal Line Printing

Standard Accessories:

Standard Accessories: Roll paper x 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers, Utility Software, Manuals), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply (Model: PS-180)

Dot Density:

Dot Density: 203 x 203 dpi

Mass:

Mass: Approx. 1.7kg

Interface:

Interface: Built-in USB + Parallel / USB + Serial / USB + Ethernet

Reliability:

MTBF: 360,000 hours MCBF: 60,000,000 lines Printer Mechanism Life: 15 million lines Auto Cutter Life: 1.5 million cuts

Power:

Power Consumption: Operating: Approx. 1.5A (Mean / Print ratio 18% with print pattern)
Standby: Approx. 0.1A (Mean) Power Supply: External power supply (Model: PS-180) Supply Voltage: DC + 24V ± 7%

Part Number:

Warranty:

1 Year
