Dintek Cat.6A Shielded Type-F Vertical Keystone Jack
Product Code: ACC-DT-1305-05010
MYR40.00
Color
Size
Brand: Dintek
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||

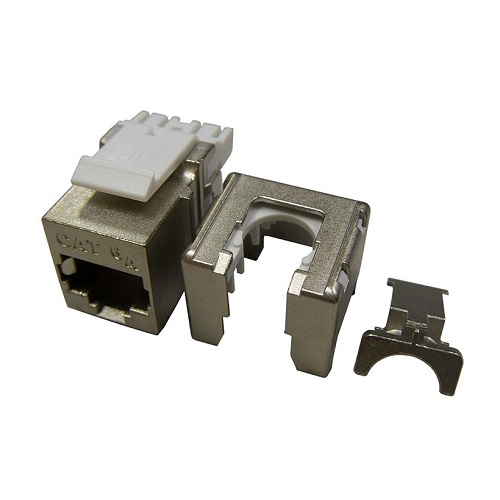

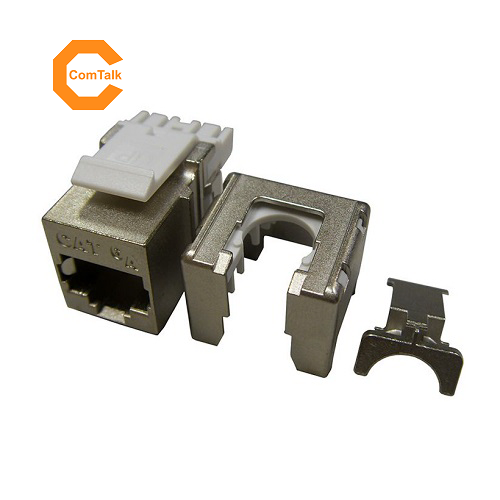

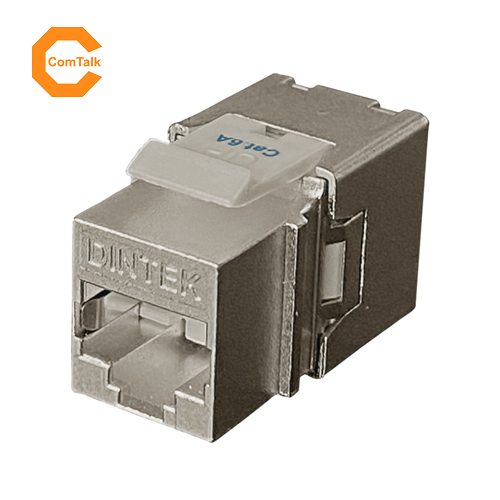

DINTEK PowerMax+TM Cat.6A fully shielded ezi-JACK180TM offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast zinc alloy connector body housing. The shielded connector is dual color coded for either 568A or 568B wiring schedules. Being specifically designed for high-speed data transmission, the DINTEK PowerMax+ Cat.6A fully shielded ezi-JACK180TM is also backwards compatible with shielded Cat.6 and Cat.5e systems.
Features:
- Meets all requirements of ANSI/TIA-568-2.D for Cat.6A
- Draft ISO/IEC 11801 amendment 2, Cat.6A
- Draft ISO/IEC 60603-7
- IDC connector with large space of each pair to improve crosstalk
- Accepts 22~24AWG, stranded or solid wire
- Special CAP design reduces external crosstalk
- Modular jack meets FCC part 68
- Wiring: T568A/B
Applications:
- 10GBASE-T Ethernet
- 100BASE-TX Fast Ethernet
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 10BASE-TX Ethernet
- ATM CB1G
- 155/622 Mbps ATM
- 100 Mbps TP-PMD
- 100VG-AnyLAN
- 4/16 Mbps Token Ring
- Voice
Standards Conformance:
- UL, C(UL), ETL Verified
- ISO/IEC11801 2nd edition
- ANSI/TIA Standard 568-2.D
- CENELEC EN 50173
