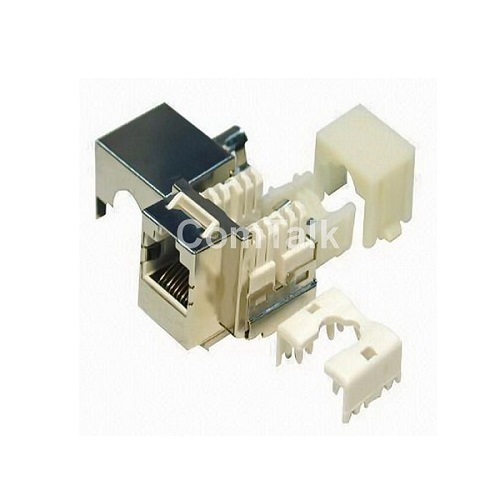

Dintek Cat.6 Shielded E-Type Horizontal Keystone Jack

Product Code: ACC-DT-1305-04006

MYR18.00

Color
Size

Brand: Dintek

  • Share

Get shipping estimates

Country
State
Shipping Method

Cat.6 110/ Krone horizontal type fully shielded keystone E-Jack, T568A/B



Transmission performance:
> Meets ANSI/TIA-568-C.2 cat.6 connecting hardware requirements



Mechanical:
> Insertion/Extraction life: 750 cycles min.
> IDC connector accepts 22-24 AWG solid wire.
> Can be used in E Tool and also punch down tool



Electrical:
> Electrical insulation resistance: 500 Mega-ohms min.
> Dielectric with standing voltage: 1,000 V, RMS, 60Hz, 1min.
> Contact resistance: 20 milli ohms max.
> Current rating: 1.5 AMPS at 20°C



Physical:
> Housing: Zinc alloy fully shielded
> Spring wire: Phosphor Bronze alloy Plated 50u” gold over 100u” nickel.
