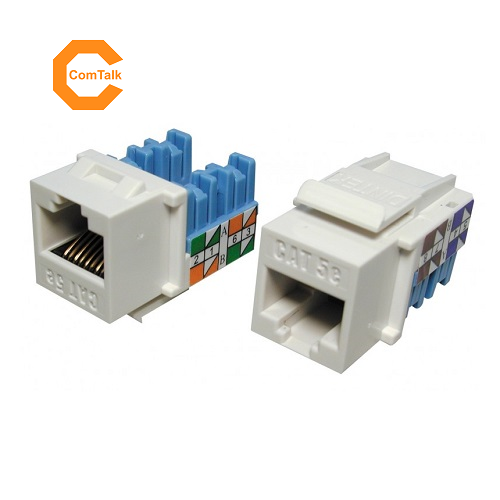

Dintek Cat.5e Unshielded E-Type Horizontal Keystone Jack
Product Code: ACC-DT-1305-03030
MYR8.00
Color
Size
Brand: Dintek
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
If it's terminating speed that you’re after, then look no further than the DINTEK PowerPROTM ezi-JACK. These jacks provide performance that exceeds Cat.5e connecting hardware performance specifications.

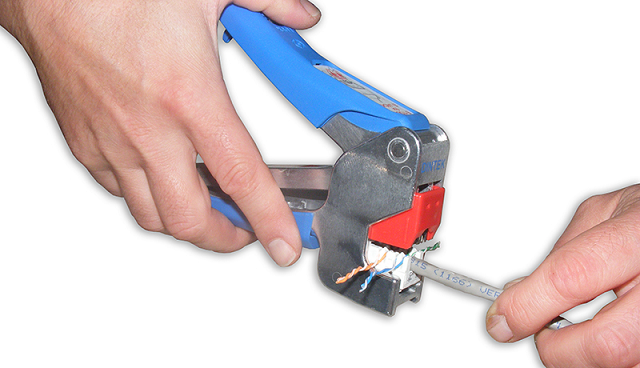

The DINTEK ezi-TOOLTM system is an all-in-one punch down and wire trim process, designed to ensure consistent connections, better performance and faster fit off times.
The PowerPROTM 90 degree ezi-JACK works with either the E Type ezi-TOOLTM or a standard 110 style DINTEK punch down tool.
Features:
- Meets all Cat.5e channel performance requirements specified in ANSI/TIA-568-2.D
- 110 type IDC or ezi-TOOLTM termination
- Accept 22~26AWG, stranded or solid wire
- Modular jack meets FCC part 68
- Wiring: T568A/B
Applications:
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
Standards Conformance:
- UL, ETL verified
- ANSI/TIA-568-C.2
- ISO/IEC 11801
- EN 50173
