Dintek Cat.5e Horizontal Shielded Keystone Jack

Product Code: ACC-DT-1305-03023

MYR14.00

Color
Size

Brand: Dintek

  • Share

Get shipping estimates

Country
State
Shipping Method

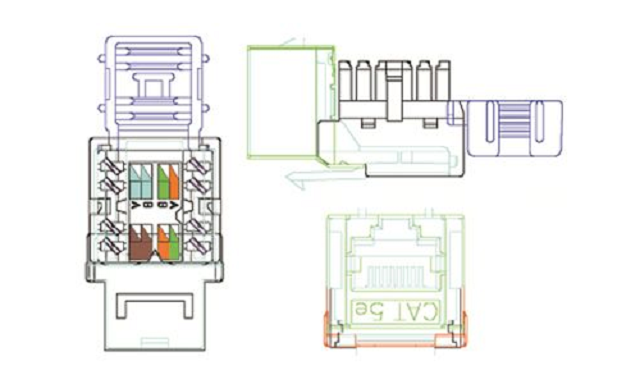

The DINTEK PowerPROTM 8-position modular jack offers enhanced performance at component, link and channel levels. The jacks also offers increased flexibility with universal termination using either T568A or T568B wiring patterns.

The PowerPROTM enhanced Cat.5 jacks have been manufactured with the ability to fit most major face plate brands with or without module clips.

Regardless of your application requirements, the DINTEK PowerPROTM keystones in combination with other DINTEK Cat.5e components, will give an assurance to the end user, along with the aid of the 25year warranty offered by DINTEK Electronic to its registered installers.



Features:

  • Meets all Cat.5e channel performance requirements specified in ANSI/TIA-568-2.D
  • 110 type IDC termination
  • Accepts 22~26AWG, stranded or solid wire
  • Modular jack meets FCC part 68
  • Wiring: T568A/B



Applications:

  • Voice; T1; ISDN
  • 10BASE-T (IEEE 802.3)
  • 16Mbps Token Ring (IEEE802.5)
  • 100VG-AnyLAN (IEEE802.12)
  • 100BASE-T Ethernet (IEEE802.3)
  • 155/622Mbps 1.2/2.4 Gbps ATM
  • 1000Mbps Gigabit Ethernet
  • 550MHz Broadband Video



Standards Conformance:

  • UL, ETL verified
  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • EN 50173
