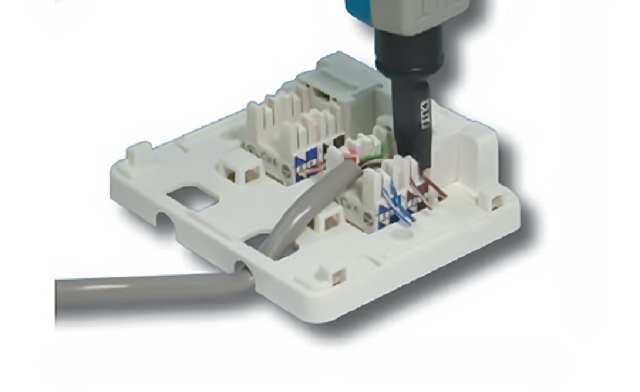

When in-wall Ethernet jacks faceplate are not an available option, expand your network with a DINTEK surface mount box. These handy units come in both loaded and unloaded versions. The surface mount box provides a clean and easy option for network expansion. Loaded surface mount boxes come pre-loaded with either PowerPRO Cat5e or PowerMAX Cat.6 RJ45 keystone jacks inside to easily connect a device to your network.

Applications:

• Voice; T1; ISDN
• 10BASE-T (IEEE 802.3)
• 16Mbps Token Ring (IEEE802.5)
• 100VG-AnyLAN (IEEE802.12)
• 100BASE-T Ethernet (IEEE802.3)
• 155/622Mbps ATM
• 1000Mbps Gigabit Ethernet
• VDSL

Standards:

• ISO/IEC11801
• ANSI/TIA Standard 568-2.D
• CENELEC EN 50173

Included Items:

• ID label position
• Spring Shutter
• Adhesive Backing
• Computer & Telephone Icons

Material Construction:

• Housing: High-impact, FLAME-PETARDANT plastic
• Standard: UL94V-0 rated

Dimension:

65 x 48 x 27 mm

Note: keystock jack not included, sold separately.
