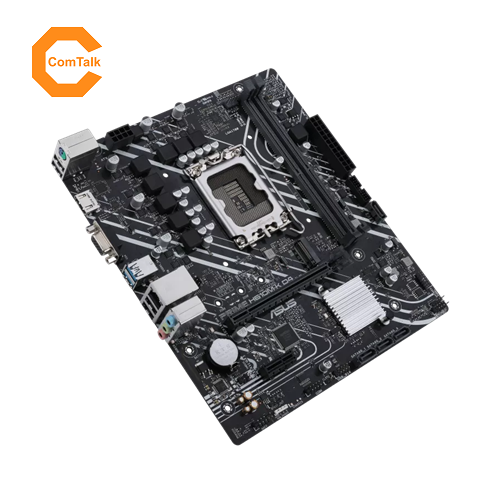

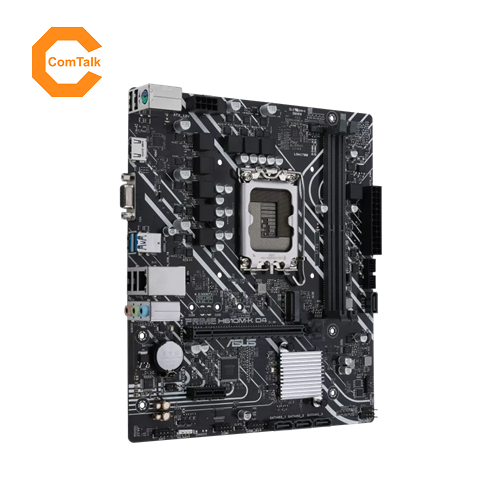

Asus PRIME H610M-K D4-CSM (LGA 1700) Motherboard

Product Code: MB-AS-PRIME-H610MKD4CSM

MYR439.00

Color

Brand: Asus

  • Share

Get shipping estimates

Country
State
Shipping Method

Highlights:

  • Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • ASUS Control Center Express (ACCE) for easier IT endpoint management

Specifications:

Model
PRIME H610M-K D4-CSM
CPU
Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet
1 x Realtek 1Gb Ethernet
USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

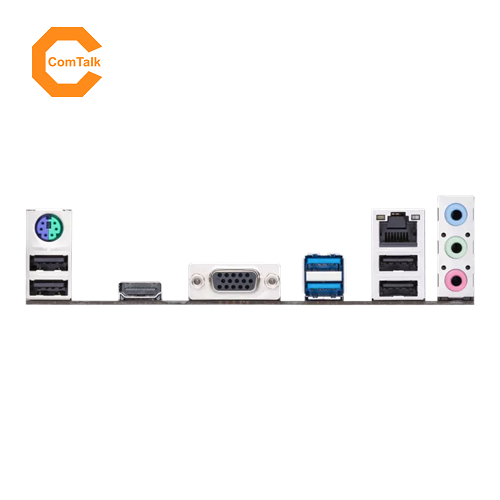

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Lighting Control

- RGB header

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

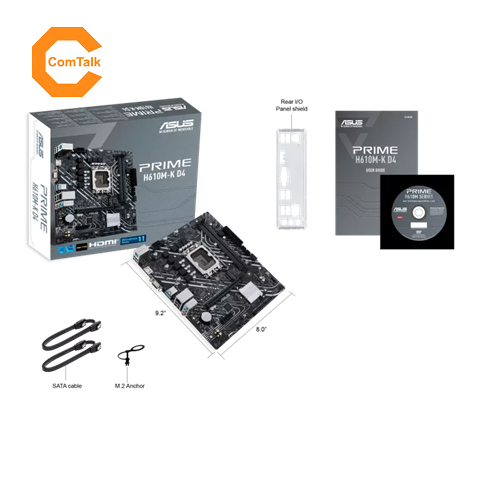

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User Guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )


Warranty:
3 Years
