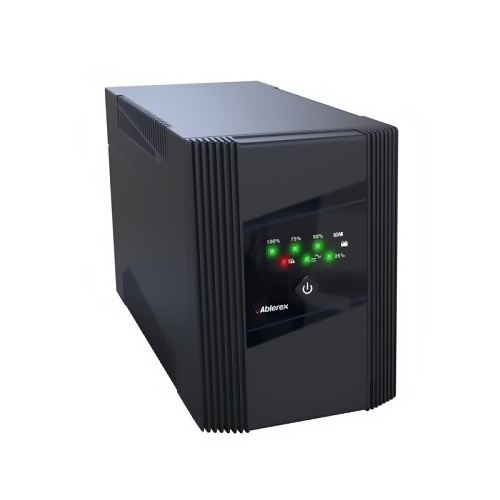

Ablerex 2200VA UPS GR2200L

Product Code: UPS-ABX-GR2200L

MYR799.00

Color

Brand: Ablerex

  • Share

Get shipping estimates

Country
State
Shipping Method

Every minute is vital when you have a small business. at any point, you've decisions to make, issues to handle, opportunities to check out.

For you, the only moment that matters is the one you are now living. The last thing you need is a disruption when something happens to the power.

That's why you turn to Ablerex uninterruptible power supply to ensure it stays "all-systems-go". So your time and mind can be better focused on the important task if running and growing your business.



Features:

Keeps you going with backup power
With up to 60 minutes continuous power, you can go on working during a power shortage. You'll also have enough time to save your work. So you can just pick up where you left off once power resumes.

Protects equipment from fluctuating power
With numerous fluxes in the power supply, your equipment and data are vulnerable to damage or loss. The automatic voltage regulator prevents this by feeding your equipment a stable, constant flow of power - so you can go on working smoothly.

Provides surge protection for modem/network line
Being connected is vital to keeping deadlines and your company's reputation. This feature gives you reassurance your network will be safe from disruptive power surges.

Connects up to 3 workstations or 6 devices



Specifications:

Input

Voltage Frequency

160Vac – 290Vac 45Hz – 65Hz (Auto-sensing)

Output (AC mode)



AVR Regulation



Increase output 15% (input -9% ~ -25%)

Decrease output 15% (inout +9% ~ +25%)

Output (Inv. mode)

Voltage

Frequency

Waveform

Capacity

Transfer Time

Backup Time

220/230/240Vac +/- 10%

50/60Hz +/-1Hz

Simulated Sine Wave

2200VA

2ms – 6ms Typical

5 – 30 mins depending on typical IT load

Battery

Voltage

Type

Capacity

Quantity

Recharge Time

24Vdc

Sealed Maintenance-free Lead Acid VRLA Type

12V/9AH

2pcs

4 - 6 hours (to 90%)

Function



DC Start

Plug-in Charging

Site Wiring Fault Indicator

Advanced Discharge Battery Management

Yes

Yes

Yes

Yes

Display



LED (Standard)



6 LEDs for Line mode, Battery mode, Fault, Load % and Battery Capacity

Protection



Overload AC mode

Overload Inverter mode

Short Circuit

Modem (Optional)

Network (Optional)

>100% input fuse blown and Buzzer continuously sounds

>100% Buzzer continuously sounds until battery cut-off

Shut down immediately

RJ11

RJ45

Alarm



Battery mode

Battery low

Buzzer sounds every 1 sec

Buzzer sounds every 0.1 sec

Physical



Dimension (WxHxD)

Net Weight

Output Connections

148 x 198 x 315mm

12kg

4 x Universal Outlet

Environment



Operation Temperature

Operation Humidity

Altitude

Noise Level

0 – 40ºC

95% RH Maximum, Non-condensing

1000m without Derating

≤ 40dB

Computer Interface



Interface Type (Standard)

Interface Type (Optional)

Compatible Platforms

USB Communication

RS232 Communication

Microsoft Windows Series, Linux, Mac, etc.

Standard and Certification



Safely Standard

EMC/Surge Standard

Mark

EN62040-2

EN61000-3-2, EN61000-3-3

CE



Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.



Warranty:

2 Years
