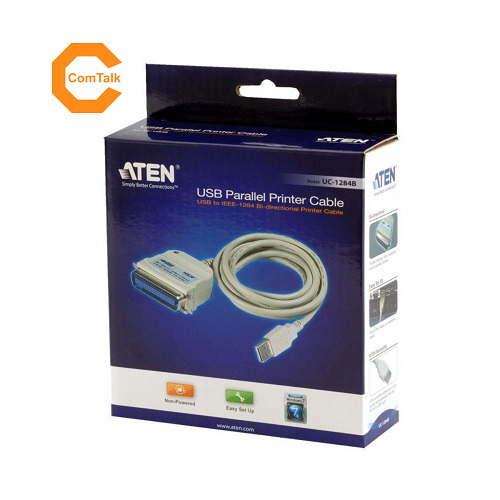

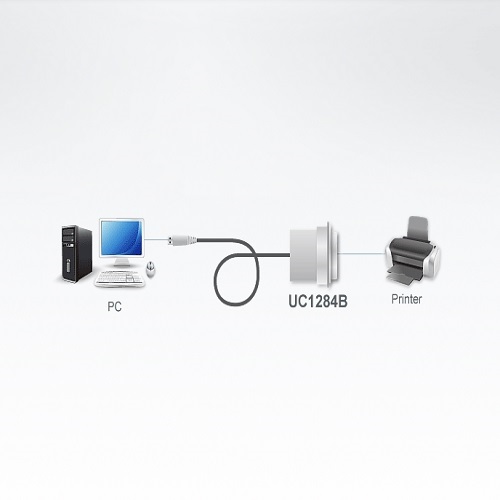

UC1284B is a USB to parallel port converter. It converts the USB on PCs, notebook PCs and handheld computing devices into a parallel port for printer connection.
Highlights:
- Fully bidirectional to ensure compatibility with today's latest printers.
- 1 USB Type A connector for standard USB cable connection.
- 1 C-36 parallel connector.
- Max. Throughput: 1.2 Mbits/ Sec (ECP Mode).
Features:
- Fully bidirectional to ensure compatibility with today's latest printers.
- 1 USB Type A connector for standard USB cable connection.
- 1 C-36 parallel connector.
- Fully compliant with USB.
- Non-powered.
- Max. Throughput: 1.2 Mbits/ Sec (ECP Mode).
- OS Support:Windows 2000, Windows XP, Windows Vista and Windows 7
Specifications:
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Printer | 1 x C-36 Male |
| Data Rate | 1.2 Mbits/Sec |
| Cable Length | 1.8m |
| LEDs | N/A |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0-40˚C |
| Storage Temperature | -20–60˚C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.11 kg ( 0.24 lb ) |
| Dimensions (L x W x H) | 5.30 x 4.30 x 1.95 cm (2.09 x 1.69 x 0.77 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents:
1 x UC1284B
1 x User Instructions
Warranty:
1 Year
