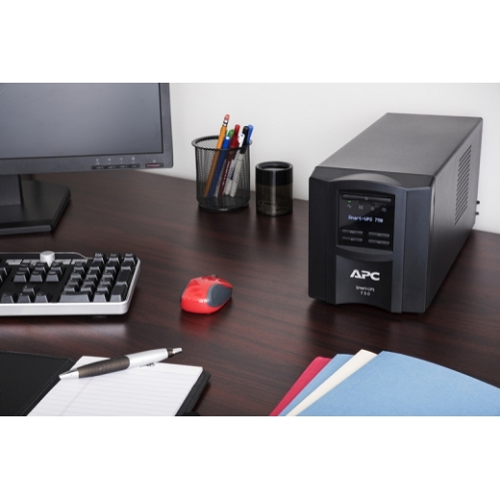

APC Smart-UPS 750VA LCD 230V with SmartConnect Port SMT750IC

Product Code: APC-UPS-SMT750IC

+ Add to Wishlist

MYR2899.00

Color

Brand: APC

  • Share

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other.
Includes: USB cable

Highlights:
  • UPS 750VA (500W)
  • 6 IEC 320 C13 Outlet, 2 IEC Jumpers Outlet
  • Intuitive LCD Interface
  • Battery Failure Notification
  • Resettable Circuit Breakers
  • Boost and Trim Automatic Voltage Regulation (AVR)

Specifications:

Output

Max Configurable Power (Watts)
500 Watts / 750VA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum

Input

Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 - 302 Adjustable, 160 - 280V
Number of Power Cords
1
Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Nominal Battery Voltage
24 V
Replacement Battery
RBC48
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
49 Watts
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
540Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
161MM, 16.1CM
Maximum Width
138MM, 13.8CM
Maximum Depth
369MM, 36.9CM
Net Weight
11.8KG
Shipping weight
14.23KG
Shipping Height
301MM, 30.1CM
Shipping Width
278MM, 27.8CM
Shipping Depth
499MM, 49.9CM
Color
Black
Units per Pallet
24.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
70.0BTU/hr

Conformance

Approvals
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.
