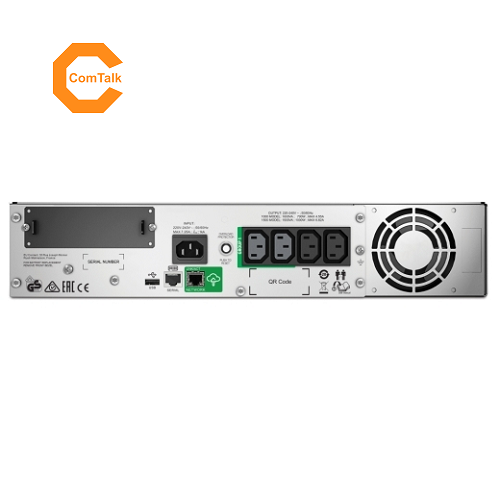

APC Smart-UPS 2200VA LCD 230V Rackmount 2U with SmartConnect Port SMT2200RMI2UC

Product Code: UPS-APC-SMT2200RMI2UC

+ Add to Wishlist

MYR9899.00

Color

Brand: APC

  • Share

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other.
Includes: Installation guide, Rack mounting support rails, USB cable

Highlights:
  • UPS 2200VA (1980W)
  • Rackmount 2U
  • 8 IEC 320 C13 Outlet, 2 IEC Jumpers Outlet, 1 IEC 320 C19 Outlet
  • Intuitive LCD Interface
  • Battery Failure Notification
  • Resettable Circuit Breakers
  • Boost and Trim Automatic Voltage Regulation (AVR)

Specifications:

Output

Max Configurable Power (Watts)
1.98kWatts / 2.2kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum

Input

Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 - 302 Adjustable, 160 - 286V
Number of Power Cords
1
Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
RBC43
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
169 Watts
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
375Joules

Physical

Maximum Height
86MM, 8.6CM
Maximum Width
432MM, 43.2CM
Maximum Depth
683MM, 68.3CM
Net Weight
42.31KG
Shipping weight
49.73KG
Shipping Height
254MM, 25.4CM
Shipping Width
600MM, 60.0CM
Shipping Depth
980MM, 98.0CM
Units per Pallet
8.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
215.0BTU/hr

Conformance

Approvals
CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant


Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.
