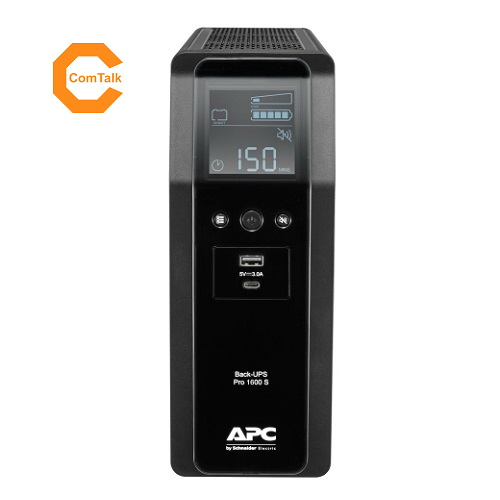

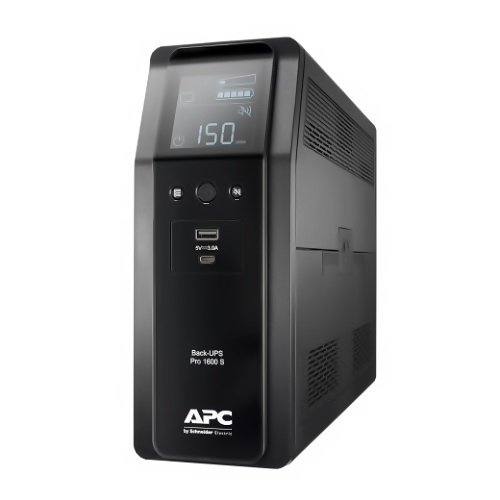

High Performance Computer and Electronics UPS for Premium Power Protection.

Highlights:

• UPS 1600VA (960W)

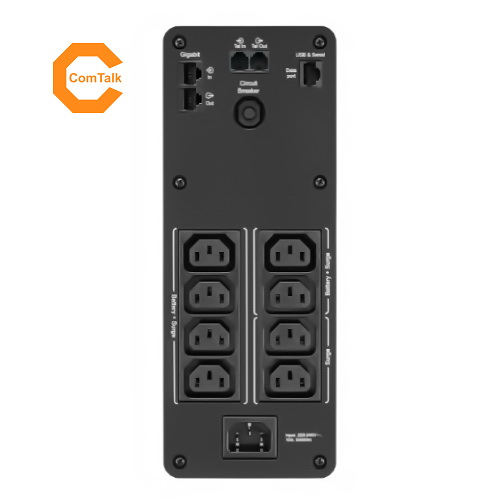

• 8 IEC 320 C13 Outlet
• Sine Wave Output
• LCD Graphics Display
• Dataline Surge Protection
• Boost and Trim Automatic Voltage Regulation (AVR)

Specifications:

Output

Max Configurable Power (Watts)

• 960Watts / 1.6kVA

Output Frequency (sync to mains)

• 50/60 Hz +/-1 Hz

Topology

• Line Interactive

Input

Input frequency

• 50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

• 176 - 294V

Batteries & Runtime

Battery type

• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

• 16hour(s)

Expected Battery Life (years)

• 3 - 5

RBC Quantity

• 1

Battery Volt-Amp-Hour Capacity

• 260

Runtime

• View Runtime Graph
• View Runtime Chart

Communications & Management

Interface Port(s)

• USB

Control panel

• Multi-function LCD status and control console

Audible Alarm

• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

• 509Joules

Data Line Protection

• RJ45 10/100/1000 Base-T Ethernet protection

Filtering

• Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height

• 260MM, 26.0CM

Maximum Width

• 100MM, 10.0CM

Maximum Depth

• 368MM, 36.8CM

Net Weight

• 12.1KG

Shipping weight

• 13.75KG

Shipping Height

• 359MM, 35.9CM

Shipping Width

• 223MM, 22.3CM

Shipping Depth

• 482MM, 48.2CM

Color

• Black

Environmental

Operating Temperature

• 0 - 40 °C

Operating Relative Humidity

• 0 - 95 (non-condensing) %

Operating Elevation

• 0-3000meters

Storage Temperature

• -15 - 45 °C

Storage Relative Humidity

• 0 - 95 (non-condensing) %

Storage Elevation

• 0-15000meters

Audible noise at 1 meter from surface of unit

• 45.0dBA

Online thermal dissipation

• 19.5BTU/hr

Conformance

Approvals

• A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Equipment protection policy

• Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.

Warranty:

2 years repair or replace
