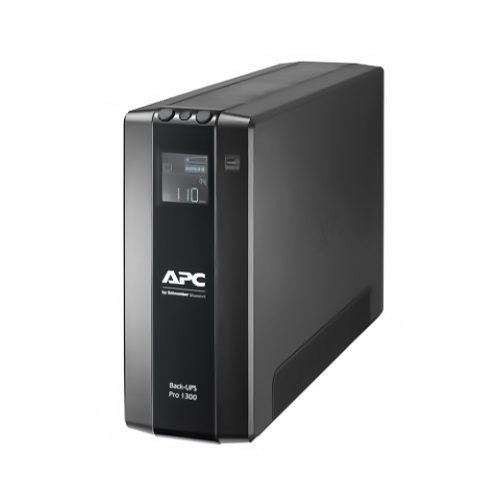

High Performance Computer and Electronics UPS for Premium Power Protection.

Highlights:

• UPS 1300VA (780W)

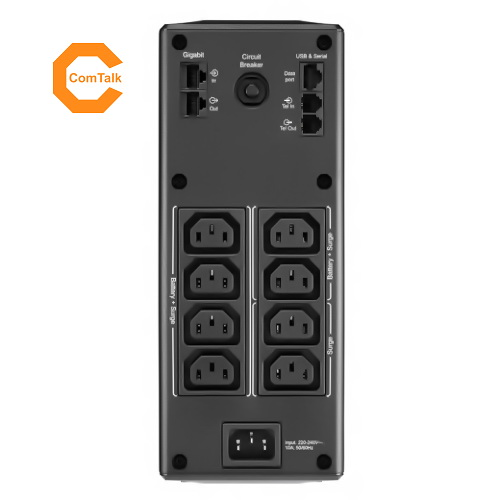

• 6 IEC 320 C13 Outlet
• LCD Graphics Display
• Dataline Surge Protection
• Boost and Trim Automatic Voltage Regulation (AVR)

Specifications:

Output

Max Configurable Power (Watts)

780Watts / 1.3kVA

Output Frequency (sync to mains)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Input

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

176 - 294V

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

16hour(s)

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

177

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

509Joules

Data Line Protection

RJ45 10/100/1000 Base-T Ethernet protection

Filtering

Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height

100MM, 10.0CM

Maximum Width

250MM, 25.0CM

Maximum Depth

382MM, 38.2CM

Net Weight

10.2KG

Shipping weight

11.85KG

Shipping Height

330MM, 33.0CM

Shipping Width

485MM, 48.5CM

Shipping Depth

225MM, 22.5CM

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 (non-condensing) %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

21.5BTU/hr

Conformance

Approvals

A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI

Equipment protection policy

Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia. Oversea country shipping not available.

Warranty:

2 years repair or replace
