Highlights:

• UPS 625VA
• 230V
• AVR
• Floor
• Universal Sockets
• Line Interactive

Features & Benefits:

• Audible alarms

  Provides notification of changing utility power and UPS power conditions

• Automatic self-test

  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

• Boost and Trim Automatic Voltage Regulation (AVR)

  Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

• Cold-start capable

  Provides temporary battery power when the utility power is out.

• Overload protection

  Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

Protection

• Battery and surge protected outlets

  Back up and protect your hardware and data during power outages, surges and spikes.

• Surge only outlets

  Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Availability

• Battery failure notification

  Provides early-warning fault analysis on batteries enabling timely preventive maintenance

• Intelligent battery management

  Maximizes battery performance, life, and reliability through intelligent, precision charging.

• Automatic self-test

  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety

• Safety-agency approved

  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

• Audible alarms

  Provides notification of changing utility power and UPS power conditions

• LED status display

  Quickly understand unit and power status with visual indicators.

Specifications:

Output

• Output power capacity

  325Watts / 625VA

• Max Configurable Power (Watts)

  325Watts / 625VA

• Nominal Output Voltage

  230V

• Efficiency at Full Load

  65.3 %

• Output Frequency (not synced)

  50/60 Hz +/-1 Hz

• Topology

  Line Interactive

• Waveform type

  Square wave

• Transfer Time

  4ms typical : 8ms maximum

Input

• Nominal Input Voltage

  230V

• Input frequency

  45 - 65 Hz

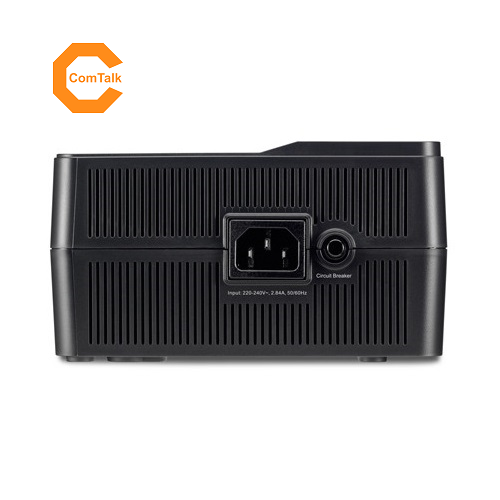

• Input Connections

  IEC-320 C14

• Cord Length

  1.22meters

• Input voltage range for main operations

  151 - 299V

• Number of Power Cords

  1

• Efficiency at Full Load

  65.3 %

• Type of Input Protection Required

  3-pole breaker

• Maximum Input Current

  3.0A

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Included Battery Modules

  1

• Typical recharge time

  6hour(s)

• Replacement Battery

  APCRBC110

• Expected Battery Life (years)

  2 - 4

• Extended Run Options

  APC-Back-UPS-625VA-230V-AVR-Floor-Universal-Sockets

• Runtime

  View Runtime Graph

  View Runtime Chart

Surge Protection and Filtering

• Surge energy rating

  273Joules

Physical

• Maximum Height

  278mm , 27.85CM

• Maximum Width

  160mm , 16.0CM

• Maximum Depth

  88mm , 8.85CM

• Net Weight

  5.0KG

• Shipping weight

  5.2KG

• Shipping Height

  399mm , 39.9CM

• Shipping Width

  215mm , 21.5CM

• Shipping Depth

  128mm , 12.8CM

• Color

  Black

Environmental

• Operating Temperature

  0 - 40 °C

• Operating Relative Humidity

  0 - 95 %

• Storage Temperature

  -15 - 40 °C

• Storage Relative Humidity

  0 - 95 %

• Audible noise at 1 meter from surface of unit

  45.0dBA

Conformance

• Equipment protection policy

  No EPP for ASEAN

Note: This item only can be shipped to West Malaysia. Kindly contact seller to ask for shipping fee to East Malaysia.

Warranty:

2 years repair or replace
