The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
Highlights:
- 80 Plus Gold Certified
- Compact with Modular Design
- Intelligent, Low-Noise Fan-Curve
- Premium 100% Japanese Capacitors
- Industrial-Grade Protection
- 10-Year Warranty
Features:
80 Plus Gold Certified

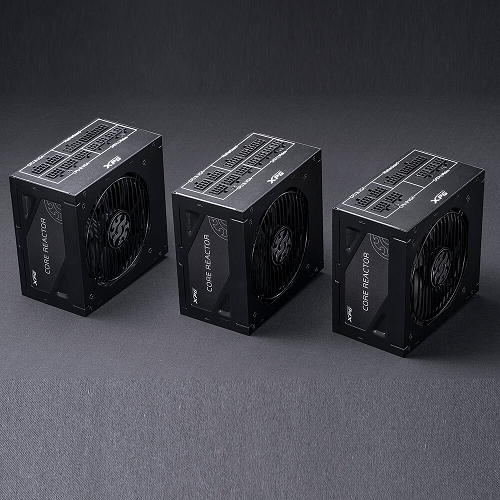

The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.
Cybenetics LAMBA / ETA Certified
XPG CORE REACTOR SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
For more information on XPG CORE REACTOR’s Cybenetics certifications, please visit XPG CORE REACTOR SERIES PSU - Cybenetics Labs – PSU Efficiency & Noise Level Certifications.
Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular

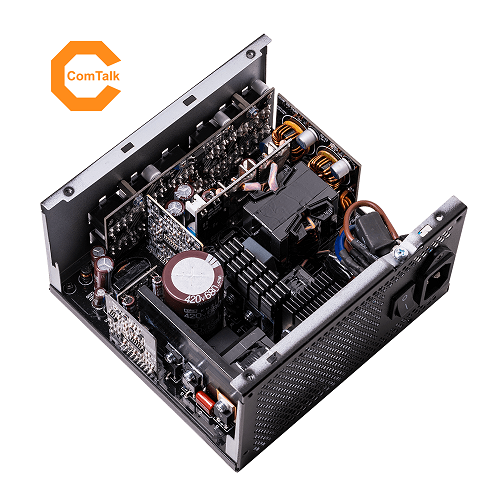

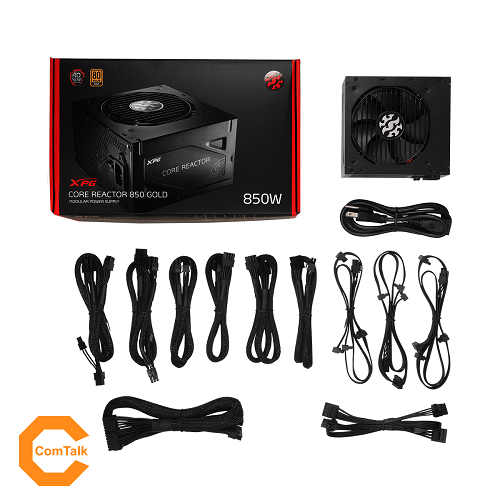

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Over Temperature Protection (OTP)
- No Load Operation (NLO)
- Surge & Inrush Protection (SIP)
Specifications:
Dimensions (L x W x H)
150 x 140 x 86mm
80 PLUS RATING
GOLD
ATX Version
Intel ATX 12V V2.52
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / RCM / NOM / BSMI / KC
PFC
0.99
Input Voltage
100V-240V
Input Current
10A-5A
Input Frequency
47Hz-63Hz
Operating Temperature
50℃
Fan Size
12cm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400
Noise Level
Noise Level @ 20% : 11.2dB(A)
Noise Level @ 50% : 850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100% : 850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
MTBF
100K hours at full load
ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
850W : 2 / 750W : 2 / 650W : 2
PCI-E 6+2 Pin Connector
850W : 6 / 750W : 6 / 650W : 4
SATA Connector
12
Peripheral 4 Pin Connector
4
Floppy 4 Pin Connector
-
Weight
850W:
Product+cables:1.45kg+1.08kg (3.2lb+2.4lb) ±5%
with Package:3.23kg (7.1lb) ±5%
750W:
Product+cables:1.41kg+1.08kg (3.1lb+2.4lb) ±5%
with Package:3.19kg (7.0lb) ±5%
650W:
Product+cables:1.31kg+0.5kg (2.9lb+1.1lb) ±5%
with Package:3.09kg (6.8lb) ±5%
Warranty:
10 Years
