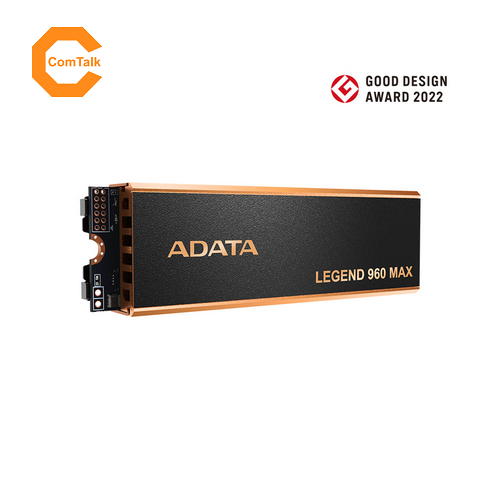

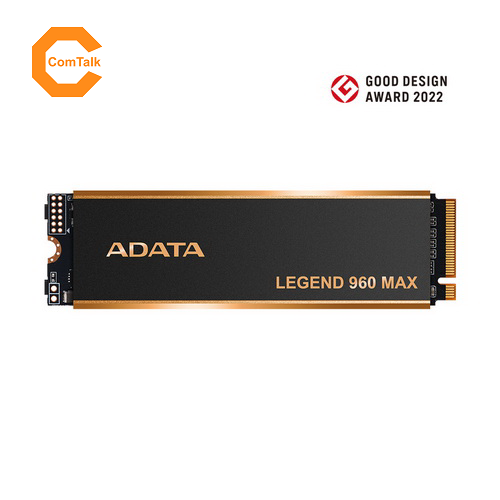

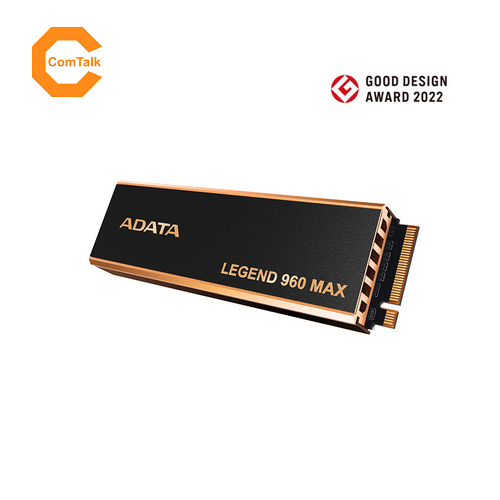

ADATA LEGEND 960 MAX PCIe Gen4 x4 M.2 2280 Solid State Drive [SSD] (1TB/2TB)
Product Code: SSD-ADT-L960MAX
MYR489.00
Size
Brand: ADATA
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
Highlights:
- PCIe Gen4 x4
- ax. read/write speed: 7,400/6,800 MB/s
- Capacity: Up to 4TB
- Heatsink provides effective cooling
- Supports latest Intel and AMD platforms
- Works with PS5 as expanded storage, click here for details
- 5-years warranty
Features:
With a finned heat sink design and the latest PCIe 4.0, LEGEND 960 MAX offers you brilliant read and write speeds of 7,400/6,800 MB/s while maintaining stable performance. Moreover, LEGEND 960 MAX not only provides capacities of up to 4TB that work perfectly well with PS5 as expanded storage but also supports the latest Intel and AMD platforms, making it the holy grail for all creative masters!
Unparalleled Speed
The LEGEND 900 boasts a sequential read/write speed of 7,000/5,400MB per second, 4 times faster than standard PCIe Gen3 SSDs and 13 times faster than SATA SSDs, and it is fully backward compatible with current PCIe 3.0 platforms. This drive provides excellent output for high-level productions such as virtual visualization design, movie animation, and game development!
Redefining the Speed of Creativity
LEGEND 960 MAX supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers mind-blowing creativity and supports the latest Intel and AMD platforms, turning the device into an invincible powerhouse.
Ultimate Performance for Creators
LEGEND 960 MAX delivers a sequential read and write speed of 7,400/6,800MB per second, which is up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backward compatible with PCIe 3.0 and made for professionals to challenge the impossible.
Max Heat Dissipation, Max Stability
LEGEND 960 MAX's cooling system uses aluminum alloy to thoroughly cover the hard drive to maximize heat dissipation. With multi-layered cooling fins, it allows cool air to flow in along the metal case and push away hot air. The distinctive convection cooling design can reduce the temperature of SSD by 40% and bring out stable performances.

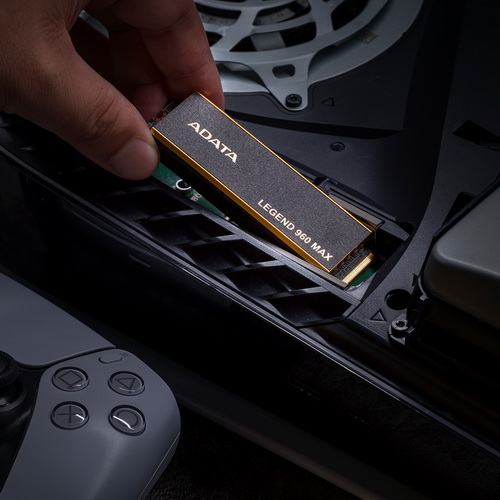

A Perfect Partner for PS5
LEGEND 960 MAX's size conforms to the slot design and can be installed in PS5 consoles as expanded storage, taking PS5's performance to the next new level. With LEGEND 960 MAX, you can enjoy AAA Games with no lag and show the world what you've got!
Keep Cool and Carry On
Details make the difference. By carefully analyzing the convection design, ADATA presents you with exclusive LEGEND 960 MAX cooling fins, which can significantly reduce the temperature of SSD by 40%. You can enjoy the seamless gaming experience offered by the unique cooling design.
*Thermal information based solely on copying game data from console to this product and from this product to console. Actual results will vary depending on individual testing environments.
SSD ToolBox Software
ADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.
Specifications:
| Capacity | 1TB / 2TB / 4TB |
|---|---|
| Form factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | SMI SM2264 |
| Dimensions (L x W x H) | 80.6 x 23.2 x 10.65mm / 3.17 x 0.91 x 0.42inch(with heat sink) 80 x 22 x 3.3mm / 3.15 x 0.87 x 0.13inch (without heat sink) |
| Weight | 36.6g /1.3oz (with heat sink) 7.3g /0.26oz (without heat sink) |
| Interface | PCIe Gen4 x4 |
| Sequential Read (Max) | Up to 7,400MB/s (PC/Laptop)*, up to 6,400MB/s (PS5) |
| Sequential Write (Max) | Up to 6,800MB/s* |
| 4KB Random Read IOPS(Max) | Up to 750K* |
| 4KB Random Write IOPS(Max) | Up to 630K* |
| Operating temperature | 0°C - 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1,500G/0.5ms |
| MTBF | 2,000,000 hours |
| Terabytes Written (TBW) | 3,120TB** |
| Warranty | 5-year limited warranty*** |
| Remark | * This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations. * This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second. * Test system configuration : M/B : MSI X570 Gaming Plus Max , CPU: AMD Ryzen 7 3700X 8-Core Processor 3.6GHz, RAM: ADATA 8G DDR4-266MHz ** The value is the minimum amount of terabyte written that could be reached. *** The SSD is based on the TBW or Warranty period. Visit https://www.adata.com/us/support/warranty/ for more details. |
